Fiber Media Converter - 1G SFP to RJ45

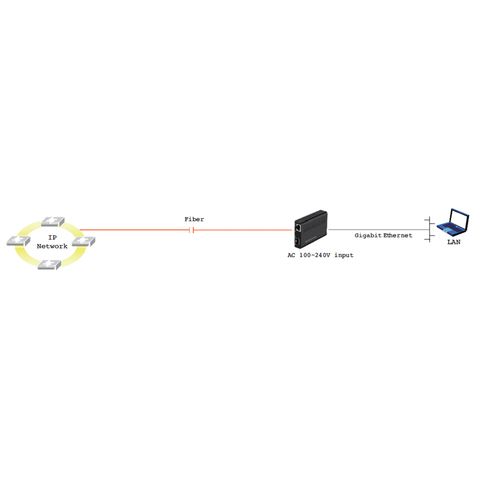

Cleerline 1G SFP to RJ45 Media Converters are essential for adapting and bridging fiber and twisted pair networks. They seamlessly convert twisted pair signals to fiber signals and vice versa.
Media converters are also valuable in real-world integrations because they enable network extension beyond the 330ft (100m) twisted pair limit, eliminate electromagnetic and radio frequency interference, and isolate devices from surges and static electricity.
The Cleerline 1G SFP to RJ45 Media Converter features one SFP fiber port and one RJ45 twisted pair port.
The Media Converter includes a power supply, making it a drop-in solution for a variety of complex network environments. Matching SFP transceiver modules and mounting accessories are sold separately.
Features
- Convert twisted pair to fiber and vice versa
- (1) SFP port to (1) RJ45 port
- 10/100/1000Base-T to 100/1000Base-X allow both Gigabit and Fast Ethernet operation
- DIP switch settings for fiber speed and LFP function
- Built-in auto-negotiation and auto MDI/MDI-X
- Supports IEEE 802.1Q Tag VLAN pass-through
- 0 to 50°C (32 to 122°F) operating temperature
- Includes one power supply
Recommended Cleerline Accessories
- Rack-Mount Chassis: SSF-1RUME-12AC
- Wall-Mount Bracket: SSF-SFP-MXWMK
- 1G Duplex Multimode Transceiver: SSF-SFP-MM1G
- 1G Duplex Single-Mode Transceiver: SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver: SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver: SSF-SFP-SM1GBDB
- 1G Twisted Pair Transceiver: SSF-SFP-UMRJ451G
Downloads
- 1G SFP to RJ45 Media Converter Technical Specifications
- 1G SFP to RJ45 Media Converter Installation Manual
Ordering Information
- Media Converter with US Power Supply: SSF-SFP-RJ45-1G
- Media Converter with UK Power Supply: SSF-SFP-RJ45-1G-UK
