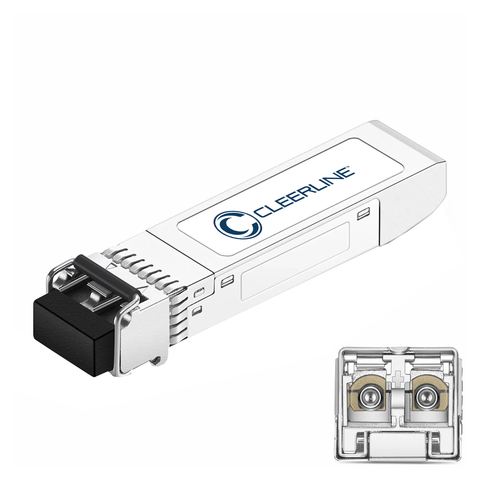

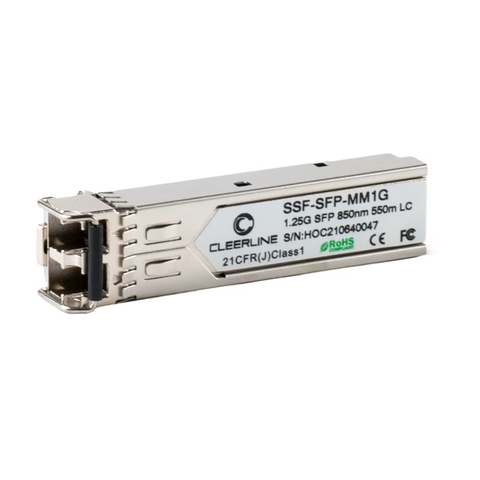

Fiber Transceiver - 1G Multimode SFP 850nm 550m Duplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 1G SFP Transceivers transmit signals up to 550m (1,804ft) over multimode fiber at 850nm wavelengths. They require a duplex LC connection and support data rates up to 1.25G.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- SFP MSA compliant
- 1000Base-SX compliant
- MSA SFF-8472 compliant
- 850nm wavelength
- Transmit up to 550m (1,804ft) over two multimode OM3 or OM4 fibers
- Transmit up to 275m (902ft) over two multimode OM1 fibers
- Duplex LC connection
- Digital Diagnostic Monitoring (DDM)
- -20 to 85°C (-4 to 185°F) operating temperature
- Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information
- 1G MMF SFP Transceiver: SSF-SFP-MM1G
Fiber Transceiver - 1G Multimode SFP 850nm 550m Duplex LC
$36.40
