Fiber Transceiver - 1G BiDi SFP 1310/1550nm 20km Simplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 1G BiDi SFP Transceivers transmit signals up to 20km (12.4 miles) over single-mode fiber at 1310nm and 1550nm wavelengths. By leveraging two wavelengths (known as WDM technology), BiDi Transceivers will simultaneously send and receive signals over a single fiber optic strand.
They require a simplex LC connection and support data rates up to 1.25G.
Please note: two matching transceivers are required for reliable operation -- one on the source end (A) and one on the destination end (B).
Features
- SFP MSA compliant
- 1000Base-BX compliant
- MSA SFF-8472 compliant
- 1310nm and 1550nm wavelengths
- Transmit up to 20km (12.4 miles) over a single single-mode fiber
- Simplex LC connection
- Compatible with SONET OC-24-LR-1
- Digital Diagnostic Monitoring (DDM)
- 0 to 70°C (32 to 158°F) operating temperature
- Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information

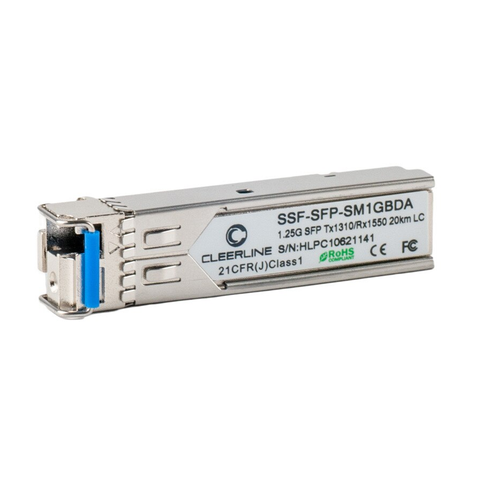

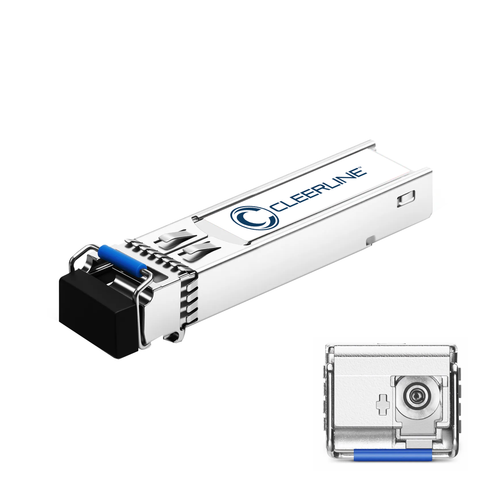

- 1G BiDi SFP Transceiver - Source (A): SSF-SFP-SM1GBDA

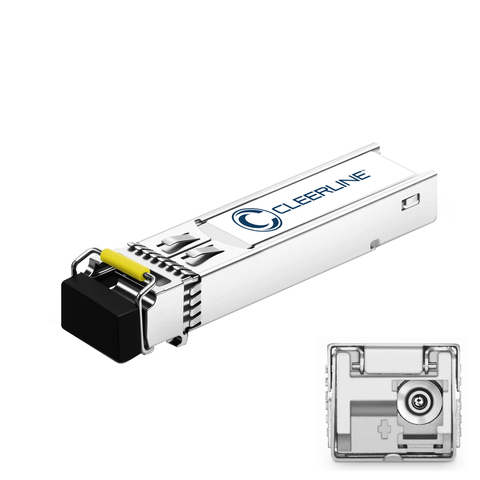

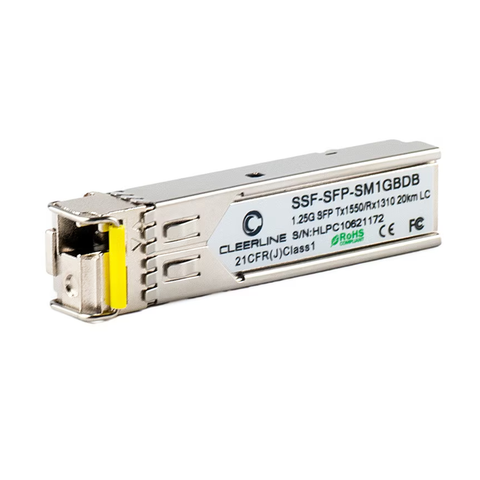

- 1G BiDi SFP Transceiver - Destination (B): SSF-SFP-SM1GBDB
