Fiber Media Converter - 1G SFP to 2xRJ45 with PoE+

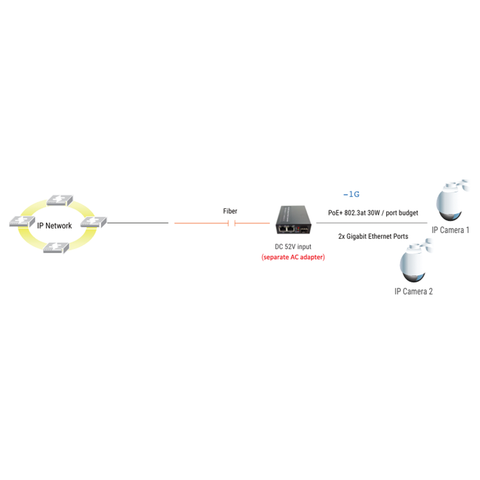

Cleerline 1G SFP to 2xRJ45 Media Converters are essential for adapting and bridging fiber and twisted pair networks. They not only convert twisted pair signals to fiber signals and vice versa, but they also inject PoE+ power ensuring remote devices are properly powered.
Media converters are also valuable in real-world integrations because they enable network extension beyond the 330ft (100m) twisted pair limit, eliminate electromagnetic and radio frequency interference, and isolate devices from surges and static electricity.
The Cleerline 1G SFP to 2xRJ45 Media Converter features a single SFP fiber port, dual RJ45 twisted pair ports with 30W PoE+, and bandwidths up 1G.
The Media Converter includes a power supply, making it a drop-in solution for a variety of complex network environments. Matching SFP transceiver modules are sold separately.
Features
- Convert twisted pair to fiber and vice versa
- (1) SFP port to (2) RJ45 ports
- 30W PoE+ injected on both RJ45 ports
- 10/100/1000Base-T to 100/1000Base-X allow both Gigabit and Fast Ethernet operation
- DIP switch settings for fiber speed, LFP functions and PoE type
- Port isolation available for the two RJ45 ports
- Built-in auto-negotiation and auto MDI/MDI-X
- Supports IEEE 802.1Q Tag VLAN pass-through
- 0 to 50°C (32 to 122°F) operating temperature
- Includes one power supply
Recommended Cleerline Accessories
- 1G Duplex Multimode Transceiver: SSF-SFP-MM1G
- 1G Duplex Single-Mode Transceiver: SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver: SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver: SSF-SFP-SM1GBDB
- 1G Twisted Pair Transceiver: SSF-SFP-UMRJ451G
Downloads
- 1G SFP to 2xRJ45 Media Converter with PoE+ Technical Specifications
- 1G SFP to 2xRJ45 Media Converter with PoE+ Installation Manual
Ordering Information
- 1G SFP to 2xRJ45 Media Converter: SSF-SFP-RJ452POE-1G
