Fiber Media Converter - 10G SFP+ to RJ45
Cleerline 10G SFP+ to RJ45 Media Converters are essential for adapting and bridging fiber and twisted pair networks. They seamlessly convert twisted pair signals to fiber signals and vice versa.

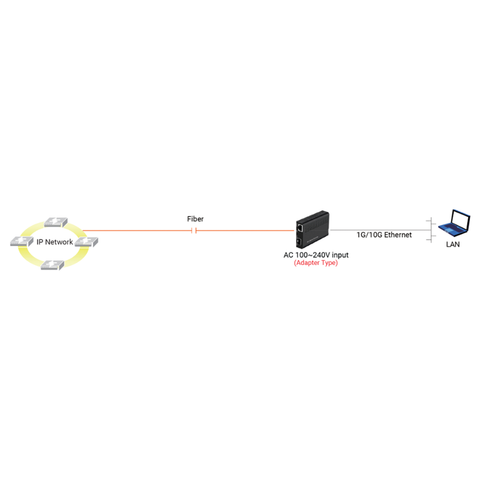

Media converters are also valuable in real-world integrations because they enable network extension beyond the 330ft (100m) twisted pair limit, eliminate electromagnetic and radio frequency interference, and isolate devices from surges and static electricity.
The Cleerline 10G SFP+ to RJ45 Media Converter features one SFP+ fiber port and one RJ45 twisted pair port.
The Media Converter includes a power supply, making it a drop-in solution for a variety of complex network environments. Matching SFP+ transceiver modules and mounting accessories are sold separately.
Features
- Convert twisted pair to fiber and vice versa
- (1) SFP+ port to (1) RJ45 port
- 100M/1G/10G Base-T to 1G/10G Base-X SFP+
- DIP switch settings for fiber speed and LFP function
- Transparent data transmission
- Built-in auto-negotiation and auto MDI/MDI-X
- Supports SFP+ hot swapping
- Supports IEEE 802.1Q Tag VLAN pass-through
- 0 to 50°C (32 to 122°F) operating temperature
- Includes one power supply
Recommended Cleerline Accessories
- Rack-Mount Chassis: SSF-1RUME-12AC
- Wall-Mount Bracket: SSF-SFP-MXWMK
- 1G Duplex Multimode Transceiver: SSF-SFP-MM1G
- 1G Duplex Single-Mode Transceiver: SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver: SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver: SSF-SFP-SM1GBDB
- 1G Twisted Pair Transceiver: SSF-SFP-UMRJ451G
- 10G Duplex Multimode Transceiver: SSF-SFP-MM10G
- 10G Duplex Single-Mode Transceiver: SSF-SFP-SM10G
Downloads
- 10G SFP+ to RJ45 Media Converter Technical Specifications
- 10G SFP+ to RJ45 Media Converter Installation Manual
Ordering Information
- 10G SFP+ to RJ45 - US Power Supply: SSF-SFP-RJ45-10G
- 10G SFP+ to RJ45 - UK Power Supply: SSF-SFP-RJ45-10G-UK
