1G Industrial Fiber-Enabled Network Switch - 2 SFP x 8 RJ45 with PoE+

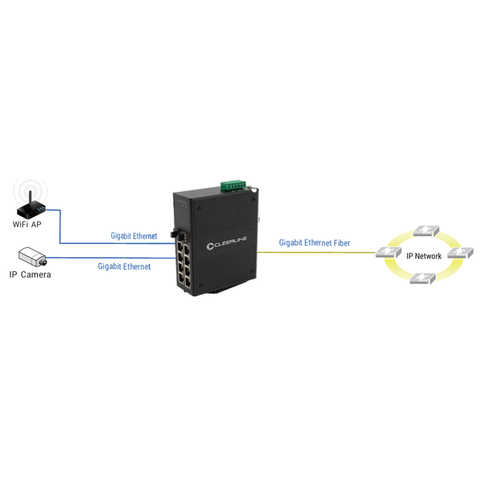

Cleerline Industrial Fiber-Enabled Network Switches effectively adapt and bridge copper and fiber networks in harsh environments and rugged applications. They seamlessly handle both twisted pair and fiber connections, providing the benefits of optical transmission while still supporting legacy equipment.

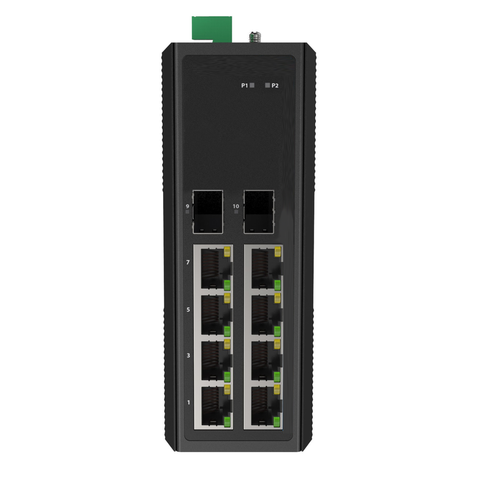

The (2) SFP x (8) RJ45 Industrial Switch with PoE+ provides 1G non-managed switching for up to two connections. Eight RJ45 ports and two SFP ports support both Gigabit and fast ethernet signals, and MDI/MDI-X auto flip and auto-negotiation ensure hassle-free, plug-and-play performance. The RJ45 ports also feature up to 30W PoE+ with a total available budget of 240W.

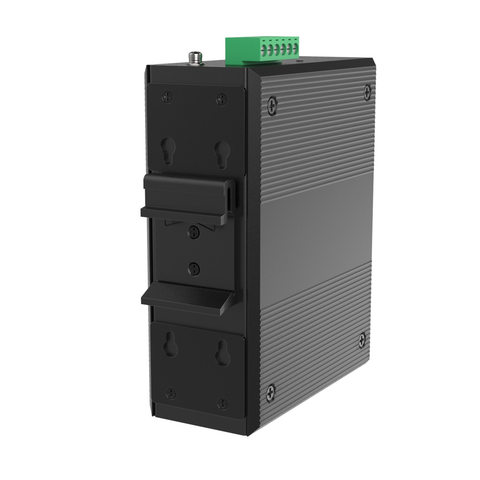

The Switch also features a rugged IP40-rated metal chassis with included DIN rail mounting bracket, built-in surge protection and extreme temperature rating making it ideal for outdoor enclosures, thermally uncontrolled rooms and other harsh environments.
Please note: one external 48V power supply is required and is sold separately. Cleerline recommends part SSF-DIN-48V120W-PS for non-PoE+ applications and SSF-DIN-48V240W-PS for PoE+ applications. Matching fiber optic SFP transceiver modules are also sold separately.
Features
- Non-managed network switch
- (2) SFP fiber optic ports
- (8) RJ45 twisted pair ports
- 1G and fast ethernet support with 10G total back-plane
- All ports support MDI/MDI-X auto flip and auto-negotiation
- IEEE 802.1Q Tag VLAN pass-through
- Store and forward switching
- 240W available PoE budget supporting 8x30W PoE+

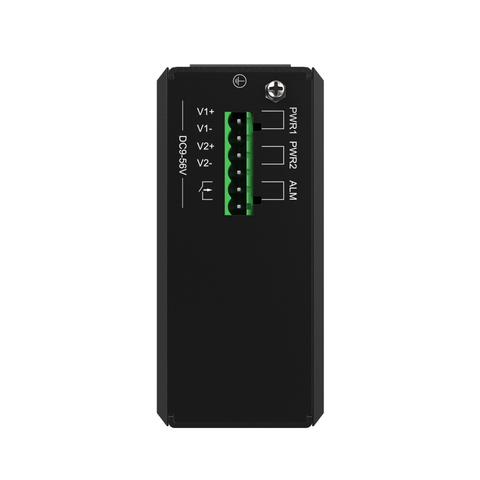

- Redundant DC power input blocks
- Reversed power polarity protection
- 6kV surge protection per port
- IP40-rated metal chassis
- -40 to 75°C (-40 to 167°F) operating temperature

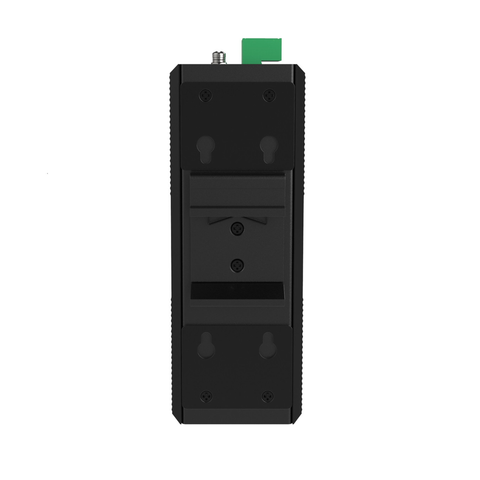

- Built-in DIN rail mounting bracket
- One 48V power supply required and sold separately
Recommended Cleerline Accessories
- 48V/120W Power Supply for non-PoE+: SSF-DIN-48V120W-PS
- 48V/240W Power Supply for PoE+: SSF-DIN-48V240W-PS
- 19 inch DIN Mounting Rail: SSF-DIN-RAIL
- 1G Multimode SFP Transceiver (duplex LC): SSF-SFP-MM1G
- 1G Single-Mode SFP Transceiver (duplex LC): SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver (simplex LC): SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver (simplex LC): SSF-SFP-SM1GBDB
- 1G Twisted Pair SFP Transceiver (RJ45): SSF-SFP-UMRJ451G
Downloads
- 1G (2) SFP x (8) RJ45 Industrial Switch with PoE+ Technical Specifications
- 1G (2) SFP x (8) RJ45 Industrial Switch with PoE+ Installation Manual
Ordering Information
- 1G (2) SFP x (8) RJ45 Industrial Switch: SSF-2X8POE-RUGGED
