1G Industrial Fiber-Enabled Network Switch - 1 SFP x 4 RJ45

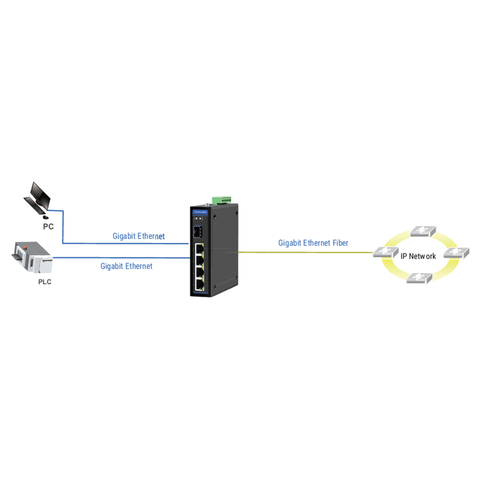

Cleerline Industrial Fiber-Enabled Network Switches effectively adapt and bridge copper and fiber networks in harsh environments and rugged applications. They seamlessly handle both twisted pair and fiber connections, providing the benefits of optical transmission while still supporting legacy equipment.
The (1) SFP x (4) RJ45 Industrial Switch provides 1G non-managed switching for up to five connections. Four RJ45 ports and one SFP port support both Gigabit and fast ethernet signals, and MDI/MDI-X auto flip and auto-negotiation ensure hassle-free, plug-and-play performance.
The Switch also features a rugged IP40-rated metal chassis with included DIN rail mounting bracket, built-in surge protection and extreme temperature rating making it ideal for outdoor enclosures, thermally uncontrolled rooms and other harsh environments.
Please note: one external 15W/48V/0.32A power supply is required and is sold separately. Cleerline recommends part SSF-48V15W-PS. Matching fiber optic SFP transceiver modules are also sold separately.
Features
- Non-managed network switch
- (1) SFP fiber optic port
- (4) RJ45 twisted pair ports
- 1G and fast ethernet support with 10G total back-plane
- All ports support MDI/MDI-X auto flip and auto-negotiation
- IEEE 802.1Q Tag VLAN pass-through
- Store and forward switching

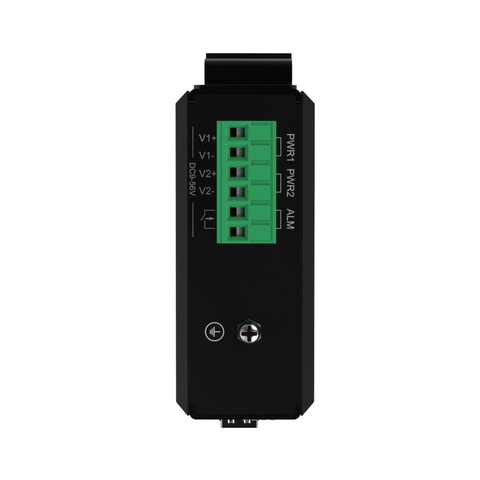

- Redundant DC power input blocks
- Reversed power polarity protection
- 6kV surge protection per port
- IP40-rated metal chassis
- -40 to 75°C (-40 to 167°F) operating temperature

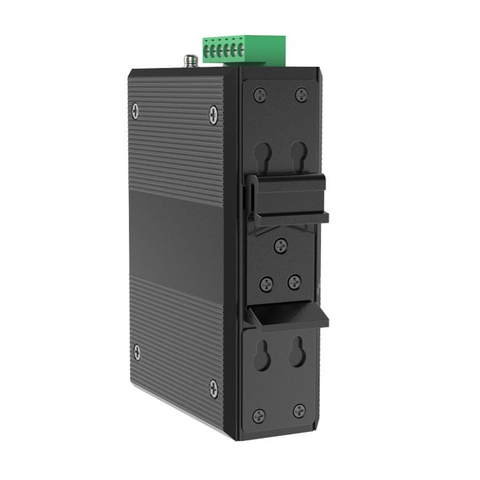

- Built-in DIN rail mounting bracket
- One 15W/48V/0.32A power supply required and sold separately
Recommended Cleerline Accessories
- External Power Supply: SSF-48V15W-PS
- 19 inch DIN Mounting Rail: SSF-DIN-RAIL
- 1G Multimode SFP Transceiver (duplex LC): SSF-SFP-MM1G
- 1G Single-Mode SFP Transceiver (duplex LC): SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver (simplex LC): SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver (simplex LC): SSF-SFP-SM1GBDB
- 1G Twisted Pair SFP Transceiver (RJ45): SSF-SFP-UMRJ451G
Downloads
- 1G (1) SFP x (4) RJ45 Industrial Switch Technical Specifications
- 1G (1) SFP x (4) RJ45 Industrial Switch Installation Manual
Ordering Information
- 1G (1) SFP x (4) RJ45 Switch: SSF-1X4-RUGGED
