1G Fiber-Enabled Network Switch - 1 SFP x 4 RJ45 with PoE+

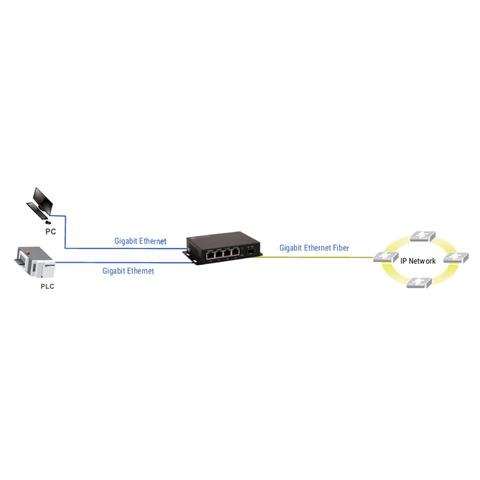

Cleerline Fiber-Enabled Network Switches effectively adapt and bridge copper and fiber networks. They seamlessly handle both twisted pair and fiber connections, providing the benefits of optical transmission while still supporting legacy equipment.

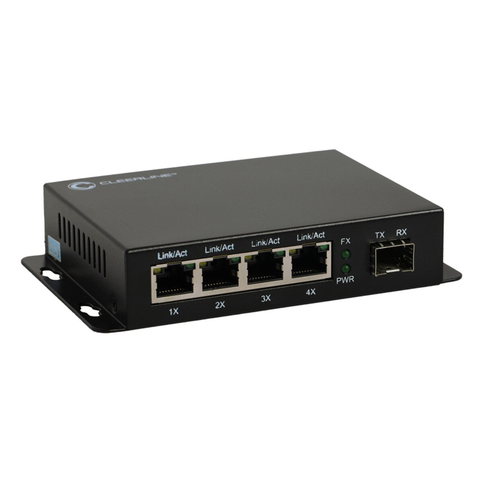

The (1) SFP x (4) RJ45 Switch with PoE+ provides 1G non-managed switching for up to five connections. Four RJ45 ports and one SFP port support both Gigabit and fast ethernet signals, and MDI/MDI-X auto flip and auto-negotiation ensure hassle-free, plug-and-play performance. The RJ45 ports also feature up to 30W PoE+ with a total available budget of 60W.
The (1) SFP x (4) RJ45 Switch features a low-profile chassis with built-in mounting brackets, making it an ideal solution for connections behind TVs, racks and other tight spaces.
The Switch includes a power supply. Matching fiber optic SFP transceiver modules are sold separately.
Features
- Non-managed network switch
- (1) SFP fiber optic port
- (4) RJ45 twisted pair ports
- 1G and fast ethernet support
- All ports support MDI/MDI-X auto flip and auto-negotiation
- 60W available PoE budget supporting 2x30W PoE+ or 4x15W PoE
- Built-in mounting brackets
- Low-profile design
- Includes power supply
Recommended Cleerline Accessories
- 1G Multimode SFP Transceiver (duplex LC): SSF-SFP-MM1G
- 1G Single-Mode SFP Transceiver (duplex LC): SSF-SFP-SM1G
- 1G BiDi SFP A-type Transceiver (simplex LC): SSF-SFP-SM1GBDA
- 1G BiDi SFP B-type Transceiver (simplex LC): SSF-SFP-SM1GBDB
- 1G Twisted Pair SFP Transceiver (RJ45): SSF-SFP-UMRJ451G
Downloads
- 1G (1) SFP x (4) RJ45 Switch with PoE+ Technical Specifications
- 1G (1) SFP x (4) RJ45 Switch with PoE+ Installation Manual
Ordering Information
- 1G (1) SFP x (4) RJ45 Switch: SSF-1SFPx4RJ45POE-1G
