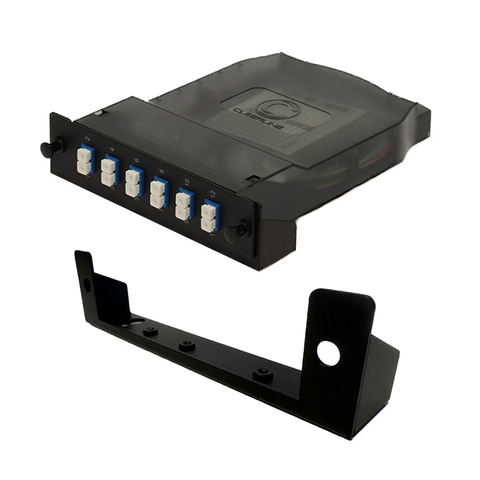

LGX Plate & Splice Cassette Mounting Bracket

The Cleerline LGX Plate and Splice Cassette Mounting Bracket provides a secure and efficient mounting solution for LGX-compatible plates, panels and splice cassettes. The bracket is ideal for mounting LGX products to walls, cabinets and other flat surfaces.

Compatible with any LGX-118 plate, panel or cassette, the bracket features a durable metal construction and includes mounting hardware for a straightforward, hassle-free installation.

The Cleerline LGX Plate and Splice Cassette combines function with practicality, ensuring your fiber connections are well-organized and secure.



Features

• Allows LGX-style plates, panels and splice cassettes to be securely mounted to a wall or other flat surface
• Compatible with one LGX-style plate, panel or cassette

• Compatible with Cleerline LGX-style plates, panels and splice cassettes as well as all third-party products conforming to the LGX-118 standard
• Includes mounting hardware
• Durable black powder-coated metal construction



Recommended Cleerline Accessories

• LGX Cassette - 12 Multimode LC: CTG-SHDLC12-MM
• LGX Cassette - 12 Single-Mode LC: CTG-SHDLC12-SMU
• LGX Cassette - 12 Single-Mode LC APC: CTG-SHDLC12-SMA
• LGX Cassette - 24 Multimode LC: CTG-SHDLC24-MM
• LGX Cassette - 24 Single-Mode LC: CTG-SHDLC24-SMU
• LGX Cassette - 24 Single-Mode LC APC: CTG-SHDLC24-SMA
• LGX Cassette - 6 Multimode SC: CTG-SHDSC06-MM
• LGX Cassette - 6 Single-Mode SC: CTG-SHDSC06-SMU
• LGX Cassette - 6 Single-Mode SC APC: CTG-SHDSC06-SMA
• LGX Cassette - 12 Multimode SC: CTG-SHDSC12-MM
• LGX Cassette - 12 Single-Mode SC: CTG-SHDSC12-SMU
• LGX Cassette - 12 Single-Mode SC APC: CTG-SHDSC12-SMA
• LGX Cassette - 1x12 MPO/MTP to LC: CTG-MTLC12-MM
• LGX Cassette - 1x12 MPO/MTP APC to LC APC: CTG-MTLC12-SMA
• LGX Cassette - 1x24 MPO/MTP to LC: CTG-MTLC24-MM
• LGX Cassette - 1x24 MPO/MTP APC to LC APC: CTG-MTLC24-SMA
• LGX Cassette - 2x24 MPO/MTP to LC: CTG-MTLC2X12-MM
• LGX Cassette - 2x12 MPO/MTP APC to LC APC: CTG-MTLC2X12-SMA
• LGX Cassette - 1x12 MPO/MTP to SC: CTG-MTSC12-MM
• LGX Cassette - 1x12 MPO/MTP APC to SC APC: CTG-MTSC12-SMA
• LGX Insert - 12 Multimode LC: SSF-LC12-MM-OM3-4
• LGX Insert - 12 Single-Mode LC: SSF-LC12-SM-OS2
• LGX Insert - 12 Single-Mode LC APC: SSF-LC12-SM-OS2-APC
• LGX Insert - 24 Multimode LC: SSF-LC24-MM-OM3-4
• LGX Insert - 24 Single-Mode LC: SSF-LC24-SM-OS2
• LGX Insert - 24 Single-Mode LC APC: SSF-LC24-SM-OS2-APC
• LGX Insert - 6 Multimode SC: SSF-SC06-MM-OM3-4
• LGX Insert - 6 Single-Mode SC: SSF-SC06-SM-OS2
• LGX Insert - 6 Single-Mode SC APC: SSF-SC06-SM-OS2-APC
• LGX Insert - 12 Multimode SC: SSF-SC12-MM-OM3-4
• LGX Insert - 12 Single-Mode SC: SSF-SC12-SM-OS2
• LGX Insert - 12 Single-Mode SC APC: SSF-SC12-SM-OS2-APC
• LGX Insert - 6 Multimode ST: SSF-ST06-MM-SM
• LGX Insert - 6 Single-Mode ST: SSF-ST06-MM-SM
• LGX Insert - Blank Insert: SSF-BLANK
• LGX Insert - Unpopulated with 6 Open Slots: SSF-06BLANK



Downloads

• SHD-BRKT-1 Technical Specifications



Ordering Information

• LGX Mounting Bracket: SHD-BRKT-1
