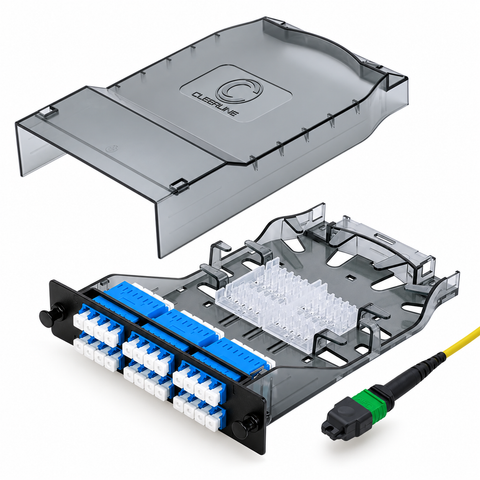

LGX Splice Cassette - 1x24 MTP/MPO to LC
Cleerline™ HD MTP Elite® Cassettes provide a fast, modular solution
for managing high-density links. Each cassette integrates an
internal MTP Elite low-loss to LC or SC breakout, eliminating
pigtails and separate splice trays. A rear MTP male (pinned)
connector with adapter accepts female (unpinned) trunks or
jumpers. Inside, guided fanout routing and strain-relief features
maintain bend radius and organization.
These cassettes are sized to fit any LGX-compatible opening.
A removable transparent cover supports easy visual verification,
and all units include port ID labeling, and dust caps. HD MTP
cassettes are available preloaded in OS2 (single-mode) and OM4
(OM3-compatible) configurations (OS2 rear APC; OM4 rear UPC),
with front faceplates offered in LC12- or 24-port or SC 12-port
configurations.
Cassette adapters and fibers are color-coded according to TIA
standards
Features
- Quickly and efficiently manage MTP and MPO fiber connections
- Engineered for durable and reliable connectivity
- 1x MTP male (pinned) connector distributed to 24x LC female connectors
- Premium US Conec MTP Elite® connector
- Available in 24-strand multimode OM4 or single-mode fiber
- Available in Type A, Type AF, Type B1, Type B2 and Universal polarities
- Conforms to LGX standards
- Compatible with LGX-style enclosures, patch panels and mounting brackets
- Eliminates the need for fusion-spliced pigtails and splice trays
- Features mounted cable winding tabs, guided fanout and strain reliefs
- Transparent cover for easy port & polarity verification
- Color-coded to TIA standards
Recommended Cleerline Accessories
- LGX Mounting Bracket: SHD-BRKT-1
Downloads
Ordering Information
- 1x24 Multimode - Type A: CTG-MTLC24-MM-A
- 1x24 Multimode - Type AF: CTG-MTLC24-MM-AF
- 1x24 Multimode - Type B1: CTG-MTLC24-MM-B1
- 1x24 Multimode - Type B2: CTG-MTLC24-MM-B2
- 1x24 Multimode - Type Universal: CTG-MTLC24-MM-U
- 1x24 Single-Mode - Type A: CTG-MTLC24-SMU-A
- 1x24 Single-Mode - Type AF: CTG-MTLC24-SMU-AF
- 1x24 Single-Mode - Type B1: CTG-MTLC24-SMU-B1
- 1x24 Single-Mode - Type B2: CTG-MTLC24-SMU-B2
- 1x24 Single-Mode - Type Universal: CTG-MTLC24-SMU-U
