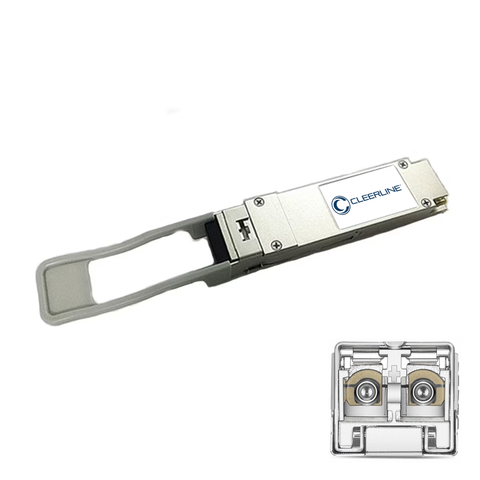

Fiber Transceiver - 40G Multimode QSFP+ BiDi 150m Duplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 40G QSFP+ Transceivers transmit signals up to 150m (492ft) over multimode OM4 fiber and 100m (328ft) over multimode OM3 fiber. They require a duplex LC connection and support data rates up to 40G using bi-directional (BiDi) optics.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- QSFP+ GSR2 MSA compliant
- SFF-8436 compliant
- BiDi operation with a nominal wavelength of 850nm and 900nm
- Transmit up to 150m (492ft) over two multimode OM4 fibers
- Transmit up to 100m (328ft) over two multimode OM3 fibers
- Duplex LC connection
- Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
- 0 to 70°C (32 to 158°F) operating temperature
- 3.5W maximum power consumption
- Tested for compatibility with Cisco products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information
- 40G MMF QSFP+ BiDi Transceiver: SSF-QSFP-40GSR2
