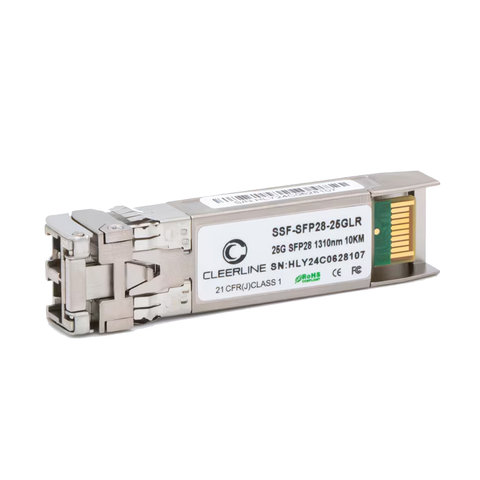

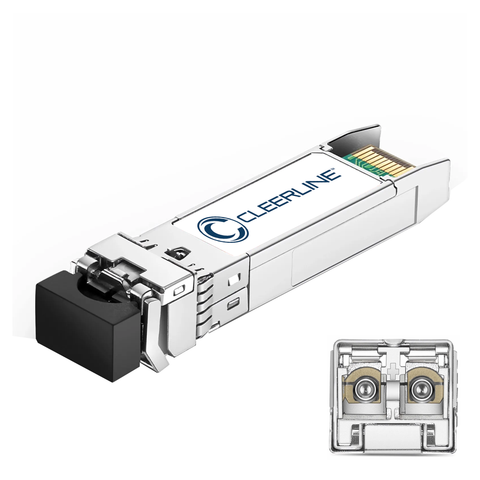

Fiber Transceiver - 25G Single-Mode SFP28 1310nm 10km Duplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 25G SFP28 Transceivers transmit signals up to 10km (6.2 miles) over single-mode fiber at 1310nm wavelengths. They require a duplex LC connection and support data rates up to 25G.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- SFP28 MSA compliant
- 25GBase-LR compliant
- Backwards compatible with 10G SFP+
- 1310nm wavelength
- Transmit up to 10km (6.2 miles) over two single-mode fibers
- Duplex LC connection
- 0 to 70°C (32 to 158°F) operating temperature
- 1.5W maximum power consumption
- Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information
- 25G SMF SFP28 Transceiver: SSF-SFP28-25GLR
Fiber Transceiver - 25G Single-Mode SFP28 1310nm 10km Duplex LC
$182.00
