Fiber Test, Troubleshooting & Certification Kit

The Cleerline Fiber Optic Testing, Troubleshooting and Certification Kit provides optical link testing, signal qualification and fiber certification for single-mode and multimode cables. Easy-to-use and powerful, the kit also stores up to 1,000 test records for PC download and printout.

The Cleerline kit includes an optical power meter and an optical light source allowing technicians and installers to verify a wide range of signal wavelengths while calculating optical power loss in decibels (dB). The kit also certifies fiber optic runs and connections in accordance with TIA-568-C standards.

For added versatility, the kit also supports copper-based twisted pair testing via a built-in RJ45 sequencer and separate RJ45 tone probe. A built-in visual fault locator provides quick connector testing and cable tracing, and a built-in flashlight streamlines work in dark and cramped spaces.

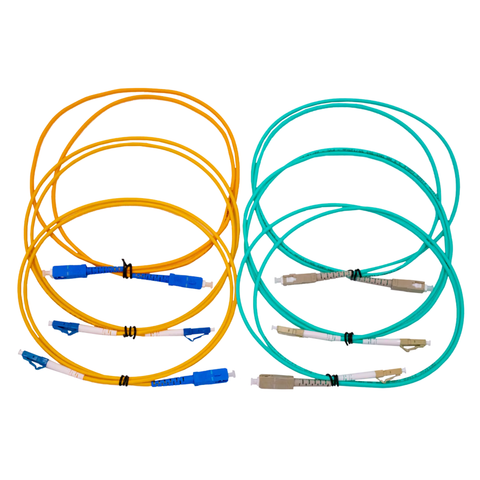

In addition to the power meter, optical light source and RJ45 tone probe, the kit also includes reference cables, couplers, adapters and cleaning pens packed in a durable plastic case.

Used properly, the Fiber Optic Testing, Troubleshooting and Certification Kit is an essential tool for ensuring fiber cable and connector integrity, optical connection cleanliness and overall connection loss.



Features

• All-in-one testing and troubleshooting kit for single-mode and multimode fiber
• Certification of fiber runs per TIA-568-C standards
• Built-in testing of copper-based twisted pair cable runs
• Easy operation and signal power referencing
• Includes optical power meter, light source (signal generator) and RJ45 remote
• Includes reference cables, couplers, adapters, pen-style fiber cleaners, power cables and carrying case
• Rechargeable lithium-ion battery
• Supports wavelengths of 850, 1300, 1310 and 1550nm with automatic wavelength detection
• 70 dB testing range
• Stores up to 1,000 test records for later download and print out via PC software
• Meter and light source feature convenient 2.8 inch color LCD display and native SC connections -- kit includes LC style adapters
• Built-in visual fault locator
• Built-in LED flashlight



Downloads

• SSF-TKITP-500 Technical Specifications
• SSF-TKITP-500 Technical Specifications - Espanol
• SSF-TKITP-500 Manual
• SSF-TKITP-500 Manual - Espanol
• SSF-TKITP-500 Quick Start Instructions
• SSF-TKITP-500 Quick Start Instructions - Espanol
• SSF-TKITP-500 Software
• SSF-TKITP-500 Software Instructions
• FOA Fiber Optic Testing Guidelines
• FOA Fiber Optic Testing Guidelines - Espanol
• Testing Multimode LC Connections Video
• Testing Single-Mode LC Connections Video
• Testing Multimode SC Connections Video
• Testing Single-Mode SC Connections Video



Ordering Information

• Test Kit: SSF-TKITP-500
