Micro-Distribution Multimode OM4 Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.
Cleerline Multimode OM4 Micro-Distribution Cables provide multi-strand fiber distribution for network, audio-visual and control applications. Available in a variety of strand counts and jacket constructions, Cleerline Micro-Distribution cables feature a loose tube construction with 250µm fibers.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- Multi-strand multimode OM4 fiber
- Loose tube construction with 250µm fibers
- Available in plenum indoor/outdoor and LSZH/CPR jacket ratings
- Constructed of premium SSF fiber
- Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
- Erika Violet (magenta toned) jacket color
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations*
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
*Cleerline SSF requires use of a core alignment fusion splicer when splicing for ultra-low loss. Cladding alignment fusion splicers are not recommended and can result in greater signal loss.
Recommended Cleerline Accessories
- Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
- Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
- Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
Downloads
- 2-24ST Multimode OM4 Micro-Distribution Technical Specifications
- 24-144 Multimode OM4 Micro-Distribution Technical Specifications
Stock Product Ordering Information

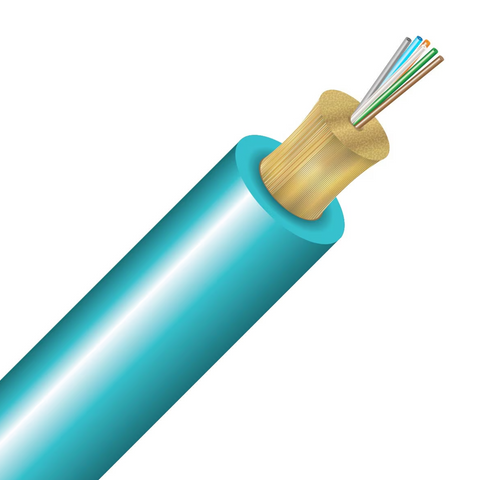

- 6F Plenum Indoor/Outdoor - 1000ft: 6D50125MOM4P
- 6F LSZH/CPR - 1000ft: 6D50125MOM4L

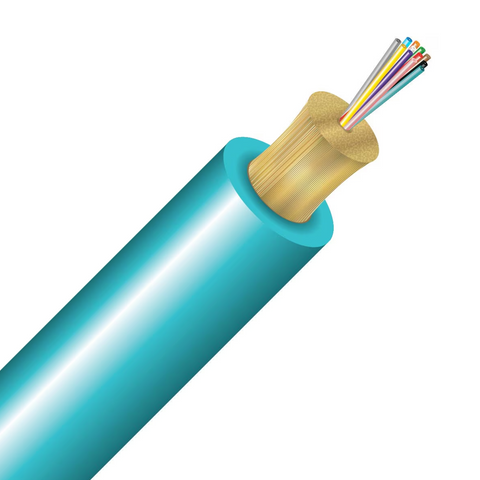

- 12F Plenum Indoor/Outdoor - 1000ft: 12D50125MOM4P
- 12F LSZH/CPR - 1000ft: 12D50125MOM4L

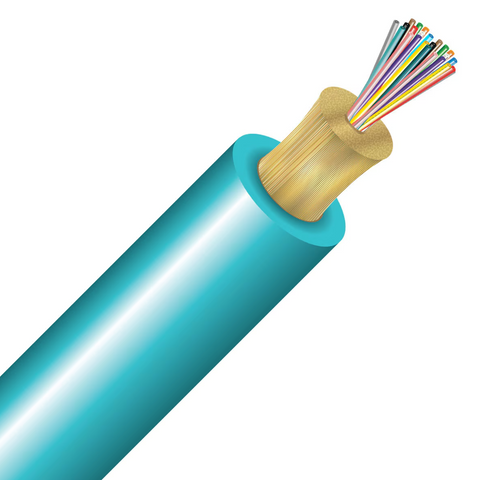

- 24STF Plenum Indoor/Outdoor - 1000ft: 24STD50125MOM4P

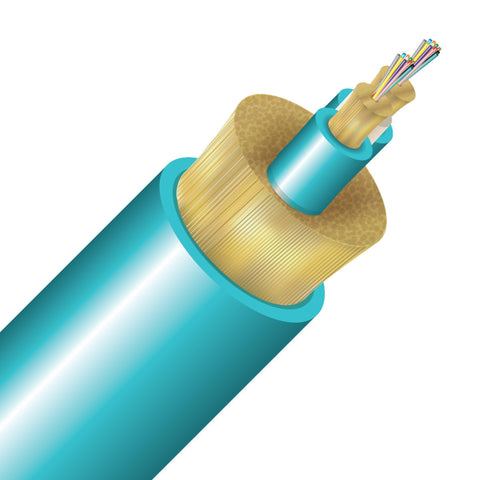

- 24F Plenum Indoor/Outdoor - 1000ft: 24D50125MOM4P

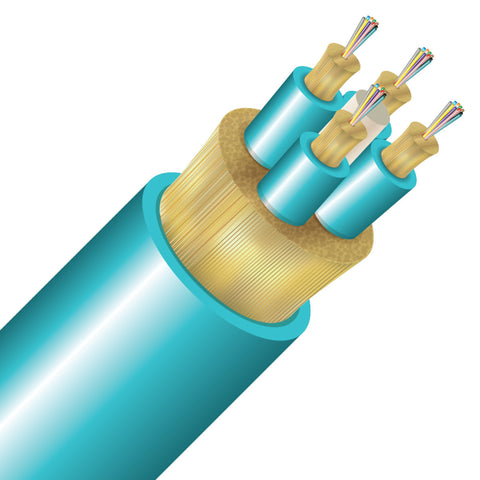

- 48F Plenum Indoor/Outdoor - 1000ft: 48D50125MOM4P

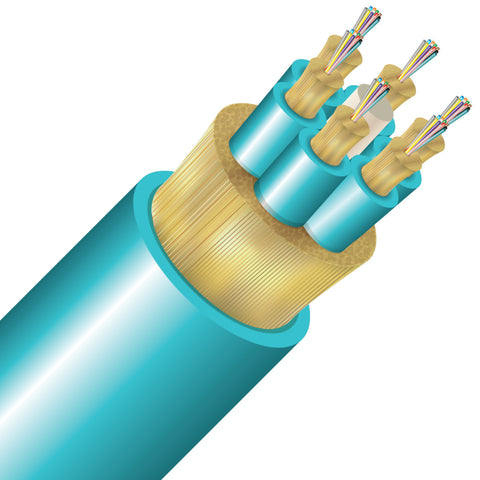

- 72F Plenum Indoor/Outdoor - 1000ft: 72D50125MOM4P
- 96F Plenum Indoor/Outdoor - 1000ft: 96D50125MOM4P

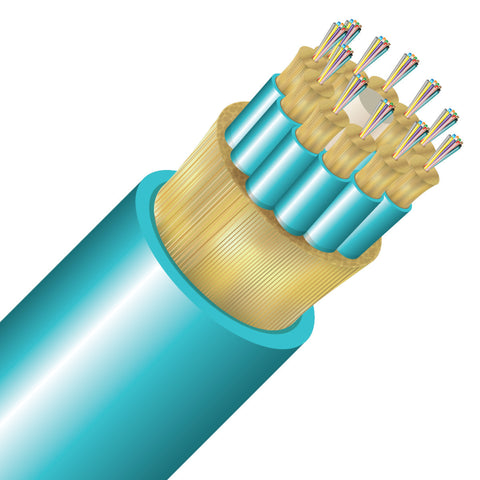

- 144F Plenum Indoor/Outdoor - 1000ft: 144D50125MOM4P
- Custom cuts and configurations available upon request - contact the factory for additional information
