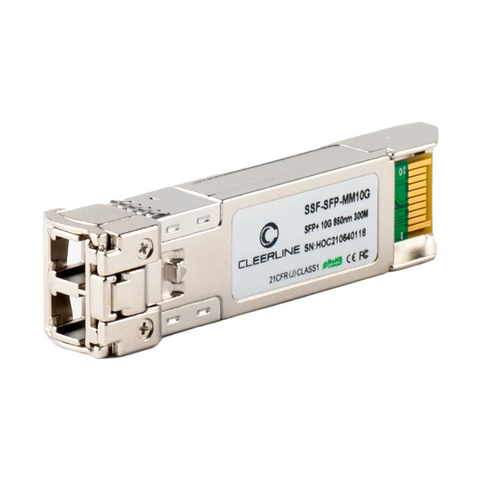

Fiber Transceiver - 10G Multimode SFP+ 850nm 300m Duplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 10G SFP+ Transceivers transmit signals up to 300m (984ft) over multimode fiber at 850nm wavelengths. They require a duplex LC connection and support data rates up to 10G.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- SFP+ MSA compliant
- 10GBase-SR compliant
- MSA SFF-8431 compliant
- 850nm wavelength
- Transmit up to 300m (984ft) over two multimode OM3 or OM4 fibers
- Duplex LC connection
- 0 to 70°C (32 to 158°F) operating temperature
- 800mW maximum power consumption
- Tested for compatibility with Cisco, Juniper, Force10, Edge-Core, ZyXEL and D-Link products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information
- 10G MMF SFP+ Transceiver: SSF-SFP-MM10G
Fiber Transceiver - 10G Multimode SFP+ 850nm 300m Duplex LC
$58.48
