Fiber Fan-Out Kit - 250um to 900um

Cleerline Fiber Optic Fan-Out Kits enable the fast and easy build-up of 250μm fibers. Fan-out kits convert thin and fragile 250μm loose-tube fibers into protected 900μm buffered fibers, making them robust enough for direct termination with standard connectors, handling and patching. Ultimately, they protect delicate fibers from damage, improve cable management and lessen the need for patch panels, splice trays or splice cassettes.

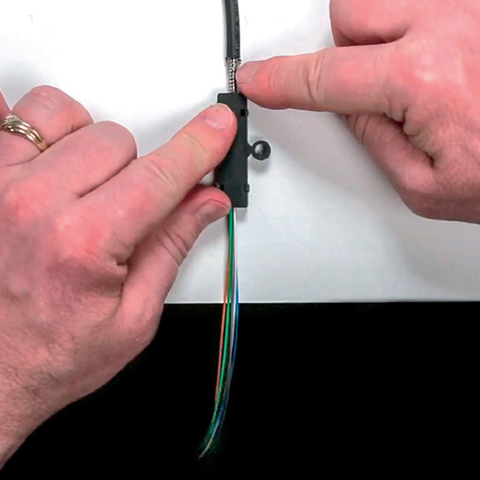

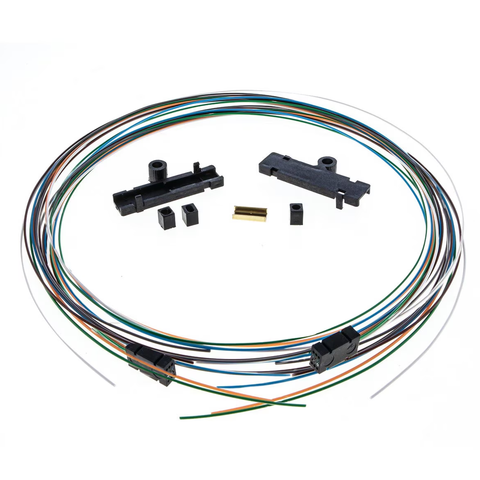

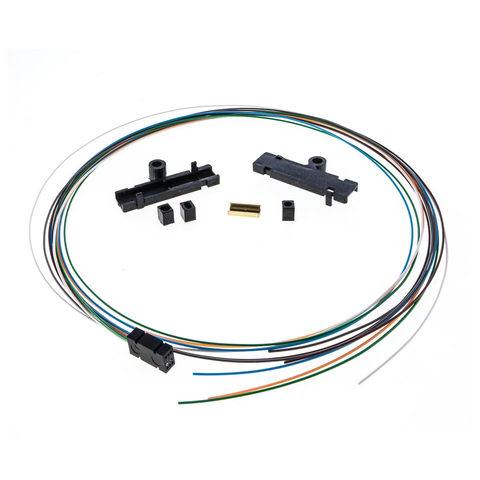

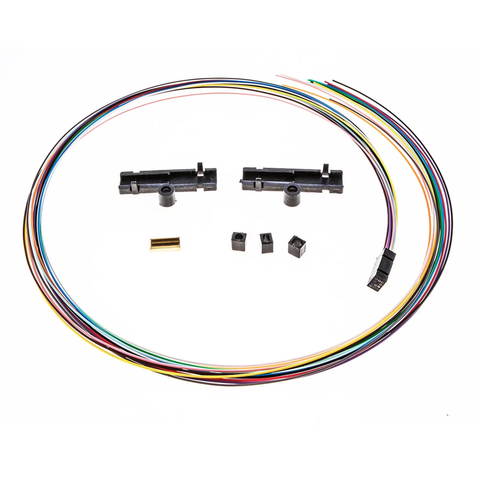

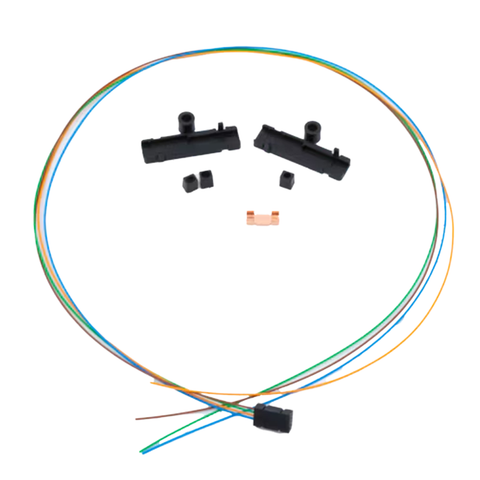

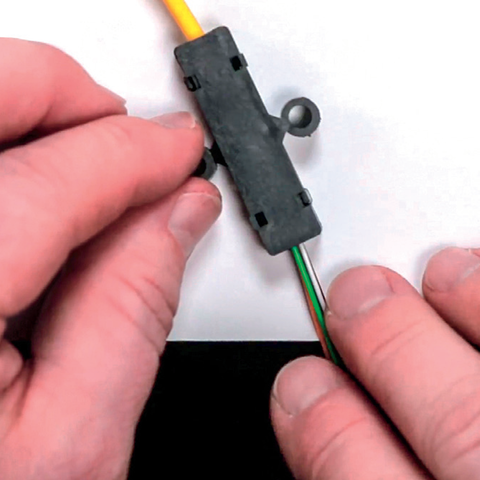

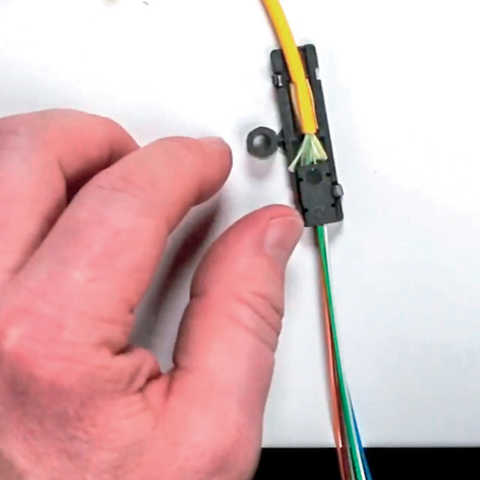

Cleerline Fan-Out Kits include individually color-coded buffer tubes and an assembly housing that simply snaps together without the need for epoxy or specialized crimp tools. They are compatible with any 250μm loose-tube multimode or single-mode cable, including SSF, BendSafe and traditional fiber constructions.

Features

• Build-up 250μm loose-tube fiber to a 900μm buffered jacket
• Available in 4, 6, 12 and 24 strand counts
• Available in 25 inch (63.5cm) and 36 inch (91.4cm) lengths
• Color-coded buffer tubes conform to TIA/EIA-568-B standards
• Assembly snaps together without the need for epoxy or specialized crimp tools
• Compatible with multimode and single-mode SSF, BendSafe and traditional fiber

Downloads

• Fan-Out Kit Technical Specifications
• Fan-Out Kit Technical Specifications - Espanol
• Fan-Out Kit Installation Instructions
• Fan-Out Kit Installation Instructions - Espanol
• Fan-Out Kit Installation Video

Ordering Information

• 4 Strand / 25 inch: FAN0425M250
• 4 Strand / 36 inch: FAN0436M250
• 6 Strand / 25 inch: FAN0625M250
• 6 Strand / 36 inch: FAN0636M250
• 12 Strand / 25 inch: FAN1225M250
• 12 Strand / 36 inch: FAN1236M250
• 24 Strand / 25 inch: FAN2425M250
• 24 Strand / 36 inch: FAN2436M250
