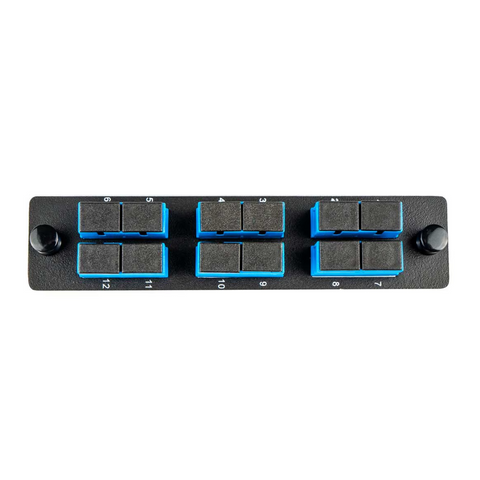

LGX Panel Insert - 12 SC
Cleerline LGX Panel Inserts provide flexible, high-density connectivity for rack-mount and wall-mount enclosures. Built on the LGX-118 standard, Cleerline Panel Inserts are compatible with a wide-array of patch panels and feature a simple push-in design with latching tabs.
The 12 SC Panel Insert is available in either multimode (both OM3 and OM4 compatible) or single-mode with six duplex SC ports allowing connectivity for twelve total fiber strands. Each port is conveniently numbered for intuitive patching.
Features
- 6 duplex SC connections supporting 12 total fiber strands
- Available in multimode OM3/OM4 or single-mode
- Intuitive port labeling
- Ports are constructed of high-impact thermoplastic with ceramic alignment sleeves (single-mode) or phosphor bronze alignment sleeves (multimode)
- LGX-118 compliant
- Compatible with Cleerline LGX-style wall-mount and rack-mount enclosures or any LGX-118 compliant accessory
Recommended Cleerline Accessories
- LGX Mounting Bracket: SHD-BRKT-1
- 1RU Rack-Mount Enclosure: SSF-1RU-E3
- 2RU Rack-Mount Enclosure: SSF-2RU-E6
- 4RU Rack-Mount Enclosure: SSF-4RU-E12
- 1 Panel Wall-Mount Enclosure: SSF-SWM-SOLID-NL-E1
- 2 Panel Wall-Mount Enclosure: SSF-SWM-SPLIT-WL-E2
- 4 Panel Wall-Mount Enclosure: SSF-MWM-SPLIT-WL-E4
Downloads
Ordering Information
- 12 SC Multimode OM3/OM4: SSF-SC12-MM-OM3-4
- 12 SC Single-Mode: SSF-SC12-SM-OS2
LGX Panel Insert - 12 SC
$58.00
