Fiber Media Converter - Serial to Fiber
Cleerline Media Converters bridge the gap between dissimilar media types, allowing signals to travel further without the risk of electromagnetic interference, radio frequency interference, static electricity or surges.

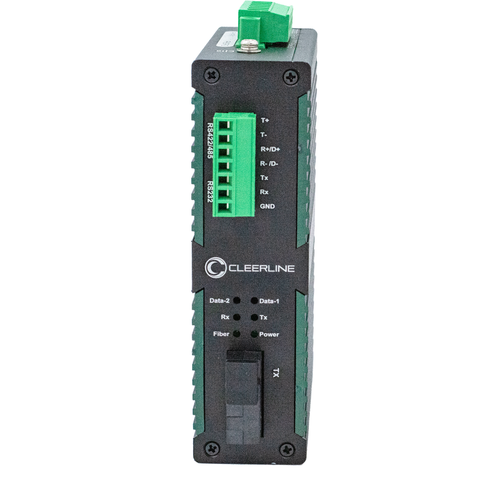

The Cleerline Serial to Fiber Media Converter converts RS-232, RS-485 and RS-422 serial control signals to fiber, providing signal extension up to 1km (0.62 miles) over a simplex multimode fiber and 20km (12.4 miles) over a simplex single-mode fiber. A built-in SC fiber port and 7-pin serial port make connections quick and simple.
Sold as a matched send (TX) and receive (RX) set, the Serial to Fiber Media Converter supports both point-to-point and point-to-multipoint transmission with data rates up to 256 Kbps. Plus, its IP40-rated industrial construction with built-in 1500W surge protection and 15kV electrostatic protection make the converter set ideal for harsh environments.
Please note: two external 15W/48V/0.32A power supplies are required and are sold separately. Cleerline recommends part SSF-DIN-48V15W-PS.
Features
- Convert serial control commands to fiber
- Compatible with RS-232, RS-485 and RS-422 control signals
- Compatible with both multimode and single-mode single strand (simplex) fiber
- Transmits up to 1km (0.62 miles) over multimode fiber and 20km (12.4 miles) over single-mode fiber
- Built-in SC fiber optic port
- Built-in 7-pin control port

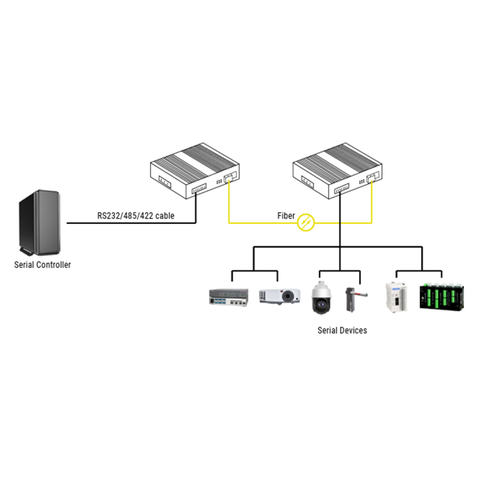

- Supports both point-to-point and point-to-multipoint transmission
- Automatic baud data rate signal detection with rates up to 256 Kbps
- IP40-rated industrial construction for harsh environments
- -40 to 75°C (-40 to 167°F) operating temperature
- Built-in 1500W surge protection and 15kV electrostatic protection
- Supports power isolation

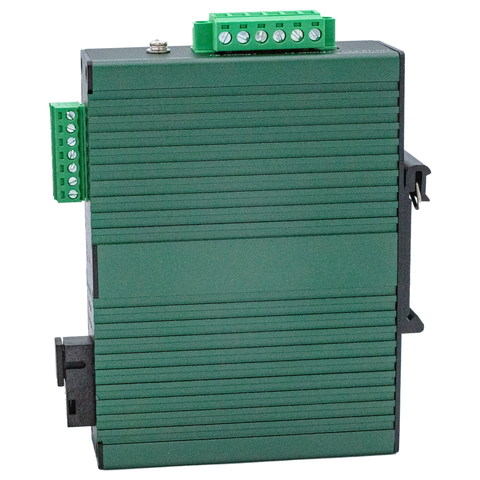

- Built-in DIN rail mounting clip
- Wide 12V - 52V voltage input with a total power consumption of 1.5W
- Two 15W/48V/0.32A power supplies required and are sold separately
Recommended Cleerline Accessories
- External Power Supply (one unit): SSF-DIN-48V15W-PS
- 19 inch DIN Mounting Rail: SSF-DIN-RAIL
Downloads
- Serial to Fiber Media Converter Technical Specifications
- Serial to Fiber Media Converter Installation Manual
Ordering Information
- Serial to Fiber Media Converter Set: SSF-SERIAL-RUGGED
