Fiber Enclosure - Indoor/Outdoor Plastic Wall-Mount for 4 Adapters
The Cleerline Indoor/Outdoor Plastic Wall-Mount Enclosure connects and manages up to eight fiber optic connections in a convenient, outdoor-rated package. Constructed from durable IP65-rated plastic, it provides protection from water, dust, pollen and other contaminants in outdoor or harsh environments.

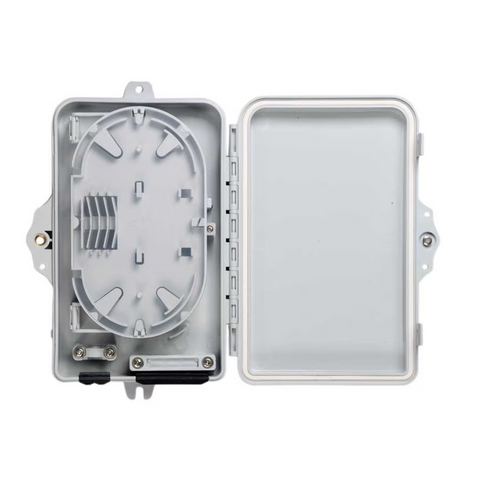

The Enclosure securely mounts four 13mm fiber adapters (sold separately), accommodating eight traditional LC connections or four traditional SC connections. Excess cable can be managed in a built-in winding area, and a hinged lid with locking bolt protects the installation.
The versatile Cleerline Indoor/Outdoor Plastic Wall-Mount Enclosure is perfect for maintaining neat and efficient fiber connections in both indoor and outdoor locations.
Features
- Rated for indoor or outdoor installation
- IP65-rated for protection from water, dust, pollen and other contaminants
- Polycarbonate + ABS plastic construction with weather gasket
- Accommodates four 13mm panel-mount fiber adapters (sold separately)
- Built-in cable winding area

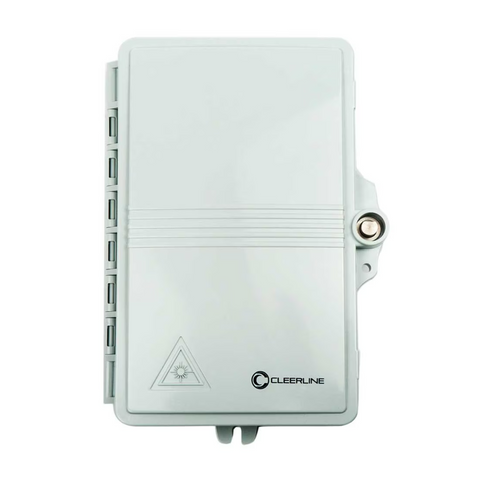

- Low-profile design with hinged cover
- Locking bolt with security key
- 7.30 x 4.60 x 1.57 inch (186mm x 116mm x 40mm) size
- Built-in clamp for feeder cable security
- Mounting brackets for installation on flat surfaces

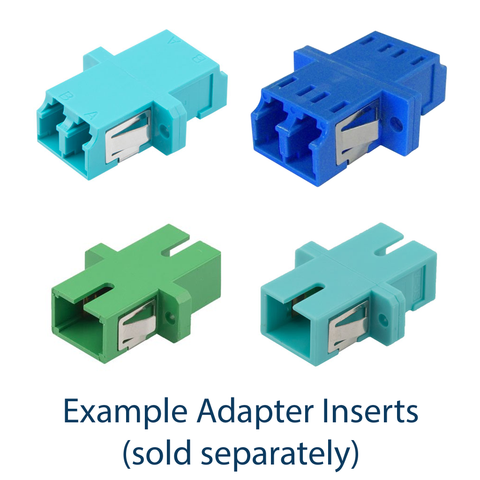

Recommended Cleerline Accessories
- Multimode Duplex LC to LC Adapter: SSF-DLCLC-MMADP
- Single-Mode Duplex LC to LC Adapter: SSF-DLCLC-SMADP
- Single-Mode Duplex LC APC to LC APC Adapter: SSF-DLCLC-SMAPCADP
- Multimode Simplex SC to SC Adapter: SSF-SSCSC-MMADP
- Single-Mode Simplex SC to SC Adapter: SSF-SSCSC-SMADP
- Single-Mode Simplex SC APC to SC APC Adapter: SSF-SSCSC-SMAPCADP
Downloads
- Indoor/Outdoor Plastic Wall-Mount Enclosure Technical Specifications
- Indoor/Outdoor Plastic Wall-Mount Enclosure Installation Manual
Ordering Information
- Indoor/Outdoor Wall-Mount Enclosure for 4 Adapters: SSF-OTB4
