Fiber Enclosure - 1RU Rack-Mount for 3 LGX Panels

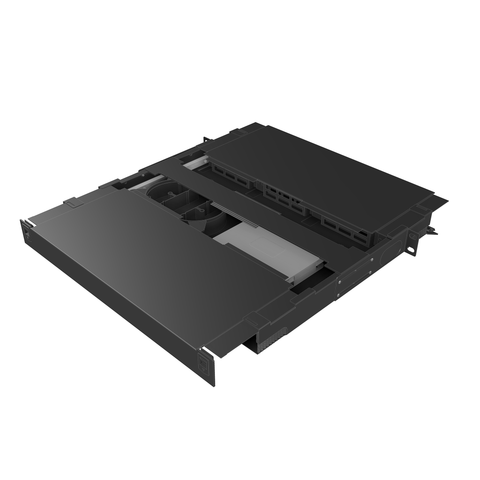

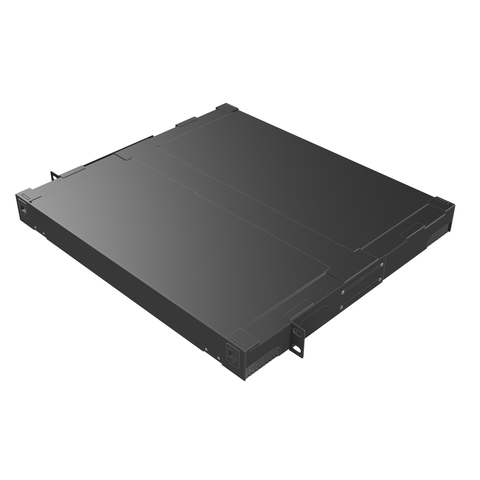

The Cleerline 1RU Rack-Mount Enclosure organizes, protects and manages fiber optic cables, connectors and splices in an easy-to-install 19 inch rack-mountable chassis. Built on the LGX standard, it provides a customizable footprint for small to medium installations.

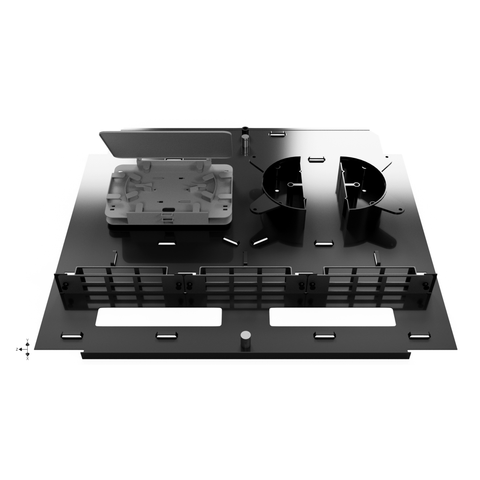

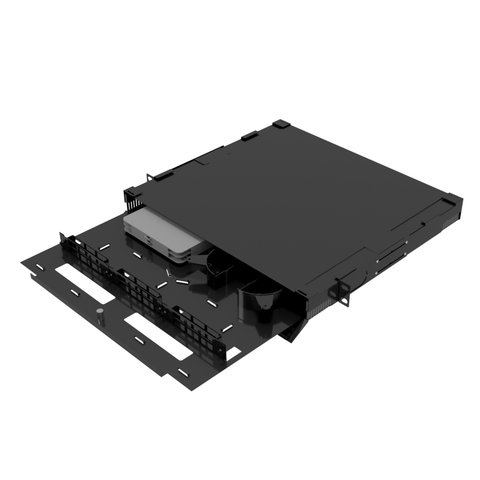

The 1RU Enclosure features three unpopulated slots that accommodate LGX-118 compatible adapter panels, cassettes and/or MTP/MPO modules (sold separately). A slide-out tray, easily removable top cover, built-in lacing points, built-in splice enclosure and two-position rack ears ensure fast and professional fiber optic deployments.

Features

• Fiber optic rack-mount enclosure
• 1RU size
• Accommodates three LGX-118 compatible adapter panels, cassettes and/or MTP/MPO modules (sold separately)
• Compatible with 19 inch racks
• Slide-out master tray
• Two-position rack ears
• Built-in splice enclosure
• Removable top cover (removal of screws not required)
• Multiple lacing points for buffer tubes, fanout kits, breakout kits and/or general cable management
• Steel construction
• 1.70 H x 17.00 W x 14.14 D inch (44mm x 432mm x 360mm) overall footprint (does not include rack ears)

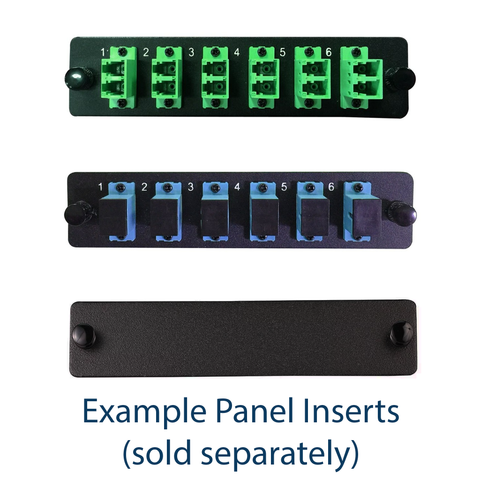

Recommended Cleerline Accessories

• LGX Insert - 12 Multimode LC: SSF-LC12-MM-OM3-4
• LGX Insert - 12 Single-Mode LC: SSF-LC12-SM-OS2
• LGX Insert - 12 Single-Mode LC APC: SSF-LC12-SM-OS2-APC
• LGX Insert - 24 Multimode LC: SSF-LC24-MM-OM3-4
• LGX Insert - 24 Single-Mode LC: SSF-LC24-SM-OS2
• LGX Insert - 24 Single-Mode LC APC: SSF-LC24-SM-OS2-APC
• LGX Insert - 6 Multimode SC: SSF-SC06-MM-OM3-4
• LGX Insert - 6 Single-Mode SC: SSF-SC06-SM-OS2
• LGX Insert - 6 Single-Mode SC APC: SSF-SC06-SM-OS2-APC
• LGX Insert - 12 Multimode SC: SSF-SC12-MM-OM3-4
• LGX Insert - 12 Single-Mode SC: SSF-SC12-SM-OS2
• LGX Insert - 12 Single-Mode SC APC: SSF-SC12-SM-OS2-APC
• LGX Insert - 6 Multimode ST: SSF-ST06-MM-SM
• LGX Insert - 6 Single-Mode ST: SSF-ST06-MM-SM
• LGX Insert - Blank Insert: SSF-BLANK
• LGX Insert - Unpopulated with 6 Open Slots: SSF-06BLANK



Downloads

• 1RU Rack-Mount Enclosure Technical Specifications
• 1RU Rack-Mount Enclosure Technical Specifications - Espanol
• 1RU Rack-Mount Enclosure Installation Manual
• 1RU Rack-Mount Enclosure Installation Manual - Espanol



Ordering Information

• 1RU Rack-Mount Enclosure: SSF-1RU-E3
