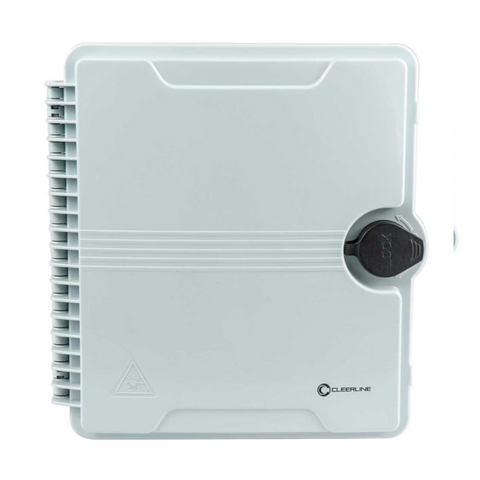

Fiber Enclosure - Indoor/Outdoor Plastic Wall-Mount for 12 Adapters
The Cleerline Indoor/Outdoor Plastic Wall-Mount Enclosure connects and manages up to twenty-four fiber optic connections in a convenient, outdoor-rated package. Constructed from durable IP65-rated plastic, it provides protection from water, dust, pollen and other contaminants in outdoor or harsh environments.

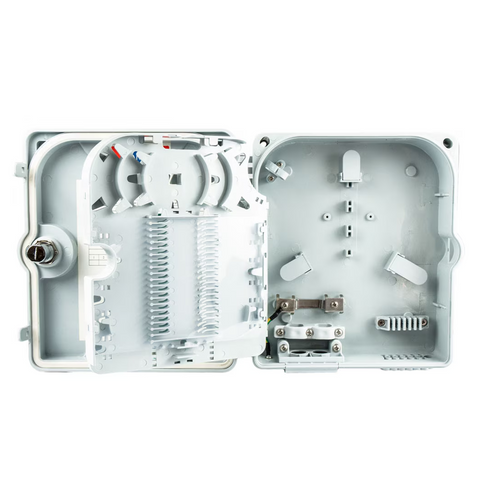

The Enclosure securely mounts twelve 13mm fiber adapters (sold separately), accommodating twenty-four traditional LC connections or twelve traditional SC connections. Excess cable can be managed in a built-in winding area, and a hinged lid with locking bolt protects the installation.
The versatile Cleerline Indoor/Outdoor Plastic Wall-Mount Enclosure is perfect for maintaining neat and efficient fiber connections in both indoor and outdoor locations.
Features
- Rated for indoor or outdoor installation
- IP65-rated for protection from water, dust, pollen and other contaminants
- Polycarbonate + ABS plastic construction with weather gasket
- Accommodates twenty-four 13mm panel-mount fiber adapters (sold separately)
- Built-in cable winding area
- Hinged cover
- Locking bolt with security key and weather cover
- 8.89 x 8.38 x 2.63 inch (226mm x 213mm x 67mm) size
- Built-in clamp for feeder cable security
- Mounting holes for installation on flat surfaces
Recommended Cleerline Accessories
- Multimode Duplex LC to LC Adapter: SSF-DLCLC-MMADP
- Single-Mode Duplex LC to LC Adapter: SSF-DLCLC-SMADP
- Single-Mode Duplex LC APC to LC APC Adapter: SSF-DLCLC-SMAPCADP
- Multimode Simplex SC to SC Adapter: SSF-SSCSC-MMADP
- Single-Mode Simplex SC to SC Adapter: SSF-SSCSC-SMADP
- Single-Mode Simplex SC APC to SC APC Adapter: SSF-SSCSC-SMAPCADP
Downloads
- Indoor/Outdoor Plastic Wall-Mount Enclosure Technical Specifications
- Indoor/Outdoor Plastic Wall-Mount Enclosure Installation Manual
Ordering Information
- Indoor/Outdoor Wall-Mount Enclosure for 12 Adapters: SSF-OTB12
