Tactical Single-Mode Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

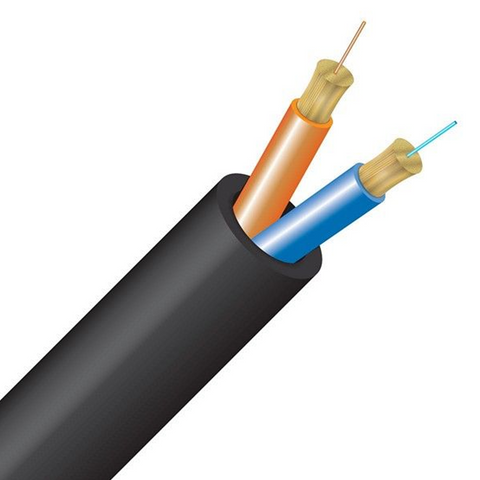

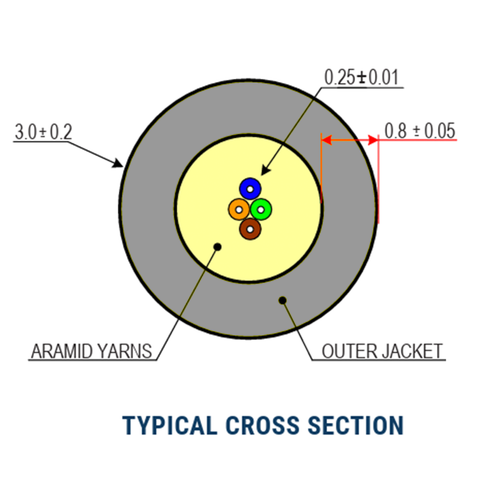

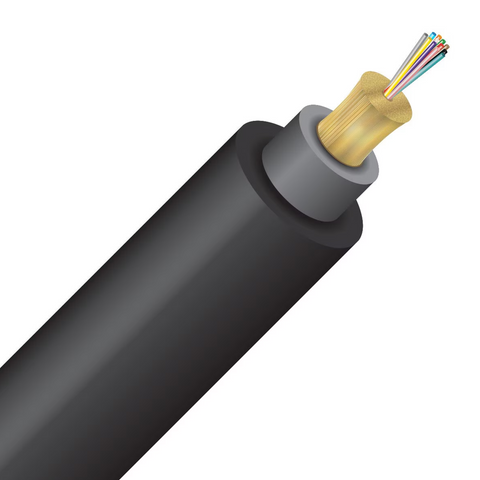

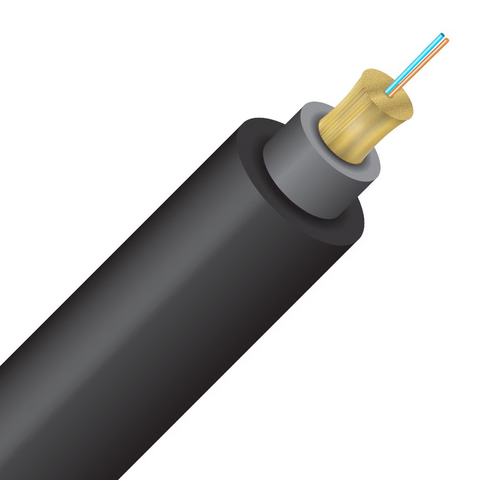

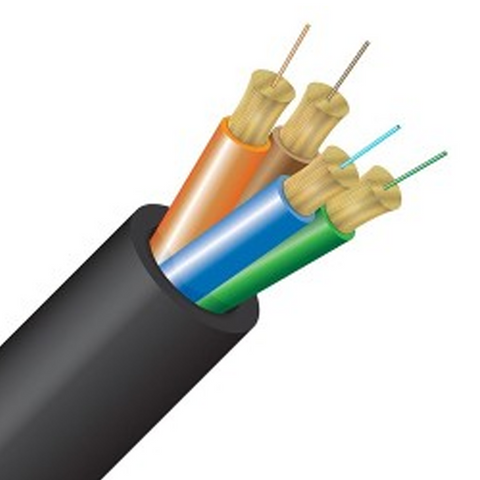

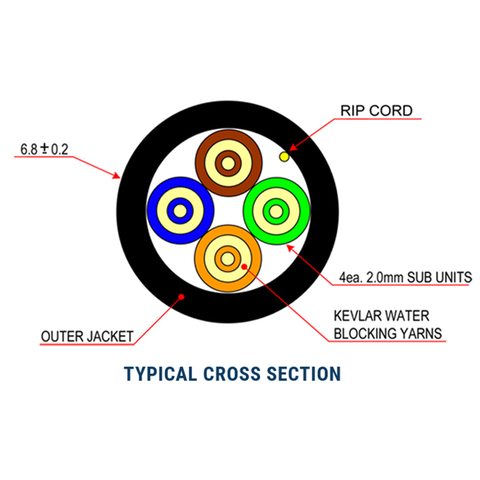

Cleerline Tactical Cables are available in breakout and micro-distribution constructions. Breakout features an overall jacket with 2.0mm sub-units, whereas micro-distribution features an overall jacket with 250μm sub-units.
Tactical cable constructions are ideal for harsh applications or those where the cable is heavily handled, including rental, staging, broadcast and live event deployments. Its black polyurethane (PU) jacket provides both durability and protection from UV, chemicals and water.
Cleerline Tactical Cables are also ideal for portable cable spools and reels.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- 2 - 12 single-mode fiber optic strands
- Available in breakout (2.0mm sub-units) or micro-distribution ( 250μm sub-units) constructions
- Constructed of premium SSF fiber
- Outdoor-rated polyurethane (PU) tactical jacket
- Jacket provides protection from water, UV, chemicals and temperature fluctuations
- Black jacket color
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Single-Mode LC Mechanical Connectors: SSF-LC-SMUPC-10
- Single-Mode LC APC Mechanical Connectors: SSF-LC-SMAPC-10
- Single-Mode SC Mechanical Connectors: SSF-SC-SMUPC-10
- Single-Mode SC APC Mechanical Connectors: SSF-SC-SMAPC-10
- Single-Mode ST Mechanical Connectors: SSF-ST-SMUPC-02
- Single-Mode ST APC Mechanical Connectors: SSF-ST-SMAPC-02
Downloads
Stock Product Ordering Information
- 2F Breakout - 1000ft: 2TB9125OS2PU
- 2F Micro-Distribution - 1000ft: 2TMD9125OS2PU
- 4F Breakout - 1000ft: 4TB9125OS2PU
- 12F Micro-Distribution - 1000ft: 12TMD9125OS2PU
- Custom cuts and configurations available upon request - contact the factory for additional information
