Simplex Multimode 3.0mm Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

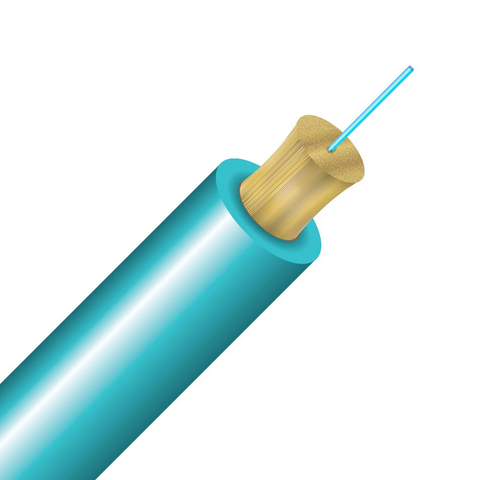

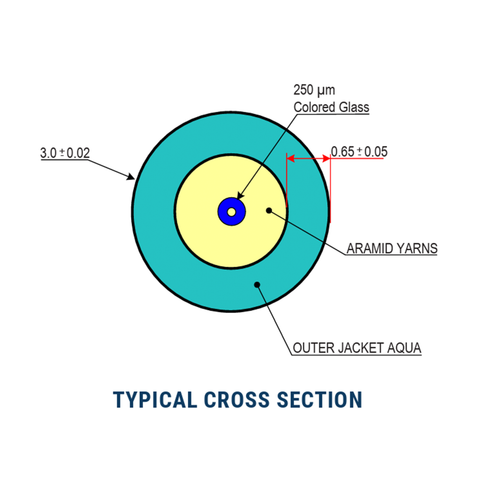

The Cleerline Simplex Multimode 3.0mm Cable features a single SSF fiber optic strand with an overall 3.0mm jacket. Available in different ratings, the Simplex Cable is ideal for communication networking, audio-visual connectivity and control signal distribution.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- 1x multimode fiber optic strand
- Available in multimode OM3 and multimode OM4
- Constructed of premium SSF fiber
- Available in riser indoor, plenum indoor/outdoor and LSZH/CPR ratings
- Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations

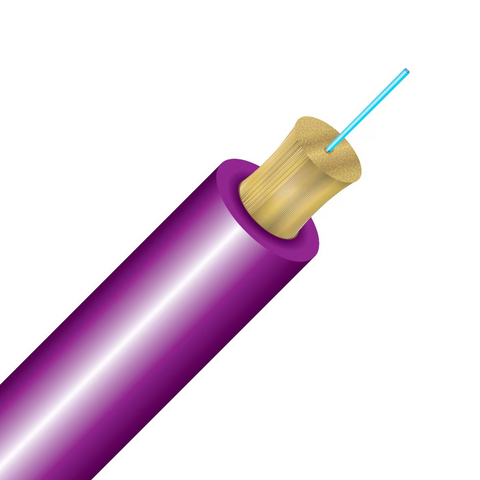

- Aqua or Erika Violet (magenta-toned purple) jacket color
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
- Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
- Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
Downloads
- Simplex Multimode OM3 3.0mm Cable Technical Specifications
- Simplex Multimode OM4 3.0mm Cable Technical Specifications
Stock Product Ordering Information
- Riser Indoor Multimode OM3 - 1000ft: S50125MOM3R
- Plenum I/O Multimode OM3 - 1000ft: S50125MOM3P
- LSZH/CPR Multimode OM3 - 1000ft: S50125MOM3L
- Plenum I/O Multimode OM4 - 1000ft: S50125MOM4P
- Custom cuts and configurations available upon request - contact the factory for additional information
