Ruggedized Multimode Micro-Distribution Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.
Cleerline Rugged Micro-Distribution Cables are the perfect solution for harsh indoor and outdoor environments. A weather-rated thickened jacket and added fiberglass yarns protect against water, abrasion, UV and rodents. Plus, the cable's loose tube construction with internal 250μm sub-units ensure a flexible, low-profile installation in ducts, pipes and conduit.
Available in 2 to 12 strand counts, Cleerline Rugged Micro-Distribution Cables are riser-rated for both interior and exterior above-ground installation.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- 2 - 12 multimode fiber optic strands
- Available in multimode OM3 and multimode OM4

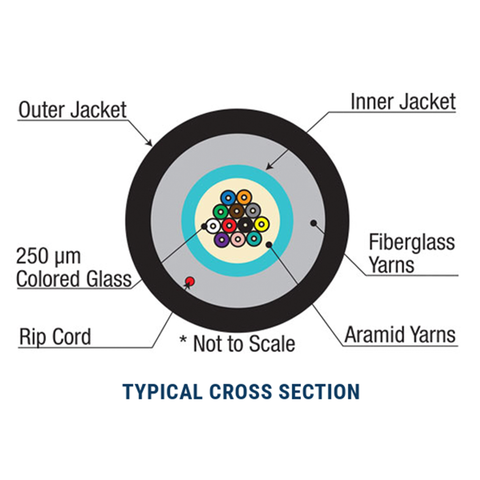

- Loose tube micro-distribution ( 250μm sub-units) construction
- Constructed of premium SSF fiber
- Riser indoor/outdoor rated
- Jacket provides protection from water, UV, abrasion and temperature fluctuations
- Rodent resistant thickened jacket with additional layer of fiberglass yarns
- Black jacket color
- 6.1mm overall low-profile diameter
- Ideal for installation above-ground or below ground in pipe, conduit or duct
- Ideal for installation in exposed trays
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
- Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
- Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
Downloads
- Rugged Multimode OM3 Cable Technical Specifications
- Rugged Multimode OM4 Cable Technical Specifications
- Rugged Micro-Distribution Cable Installation Preparation Video
Stock Product Ordering Information
- 2F Riser I/O OM3 - 1000ft: 2RMD50125OM3R
- 6F Riser I/O OM3 - 1000ft: 6RMD50125OM3R
- 6F Riser I/O OM4 - 1000ft: 6RMD50125OM4R
- 12F Riser I/O OM3 - 1000ft: 12RMD50125OM3R
- 12F Riser I/O OM4 - 1000ft: 12RMD50125OM4R
- Custom cuts and configurations available upon request - contact the factory for additional information
