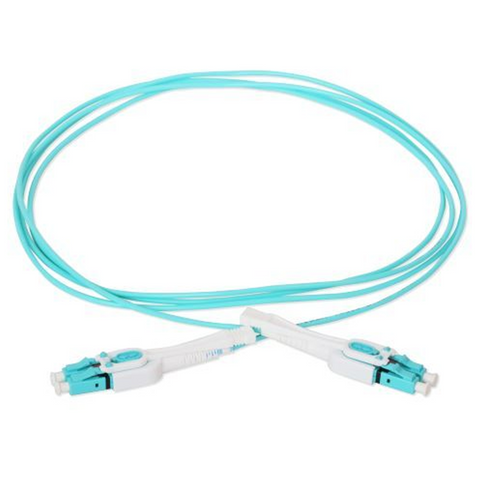

LC Uniboot Patch Cords

Cleerline Uniboot Patch Cords provide reliable, high-density duplex LC connectivity for data centers, crowded enclosures and other applications with limited space and access. They feature two fiber optic strands in a single flexible 2.0mm round riser-rated jacket and a single connector housing both LC connectors.

Available in off-the-shelf multimode OM3 and single-mode constructions, Cleerline Uniboot Patch Cords feature a removable cover allowing easy polarity adjustments without tools or adapters. Simply rotate the connector 180 degrees to select either A-to-A or A-to-B polarity.

Additionally, the connectors also include a built-in pull bar allowing quick connector changes in tight spaces and robust strain-relief for long-term performance.

Cleerline Uniboot Patch Cords are ideal for cramped rack-mount and wall-mount enclosures, significantly reducing cable clutter. Their single jacket design increases space, improving cooling for high-density applications.

Don't see your required patch cord configuration above? Use our Custom Patch Cord Builder to check inventory or quote a custom configuration.



Features

• Engineered for reliable, high-density duplex LC connectivity
• Ideal for data centers, crowded enclosures and other applications with limited space and access
• Two fiber optic strands in a single flexible 2.0mm round jacket
• Duplex LC connectivity
• In-wall riser-rated
• Available in multimode OM3 and single-mode fiber
• Polarity coded connectors for identification
• Removable cover allowing easy polarity adjustments without tools or adapters
• Built-in pull bar allowing quick connector changes
• Robust built-in strain-relief
• Available in factory-terminated lengths from 0.5 to 20m (1.6ft to 65ft)
• TIA color-coded
• Custom lengths and configurations available upon demand



Downloads

• Uniboot Technical Specifications
• Uniboot Technical Specifications - Espanol
• Uniboot Instructional Video



Ordering Information

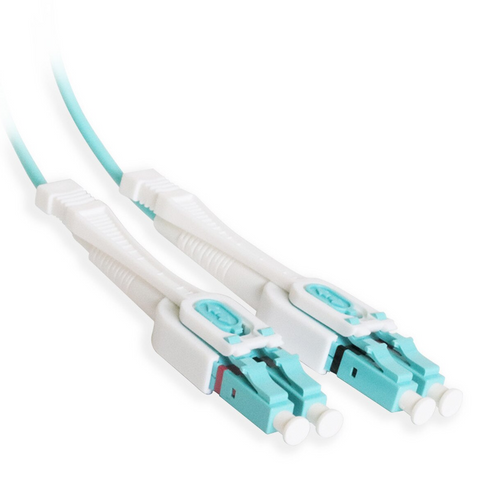

• 0.5m Multimode OM3: UOM3LCLC0.5m-UPC
• 1.0m Multimode OM3: UOM3LCLC01m-UPC
• 2.0m Multimode OM3: UOM3LCLC02m-UPC
• 3.0m Multimode OM3: UOM3LCLC03m-UPC
• 5.0m Multimode OM3: UOM3LCLC05m-UPC
• 7.0m Multimode OM3: UOM3LCLC07m-UPC
• 10m Multimode OM3: UOM3LCLC10m-UPC
• 15m Multimode OM3: UOM3LCLC15m-UPC
• 20m Multimode OM3: UOM3LCLC20m-UPC

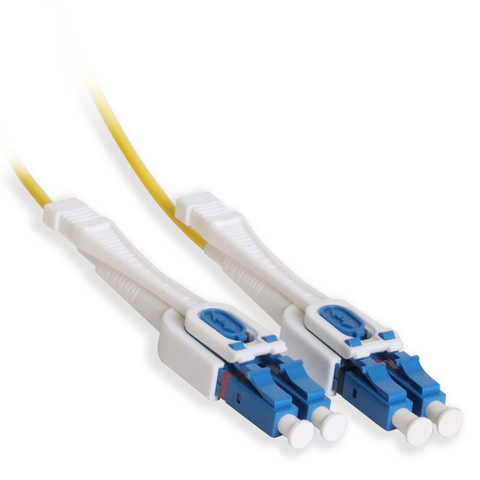

• 0.5m Single-Mode: UOS2LCLC0.5m-UPC
• 1.0m Single-Mode: UOS2LCLC01m-UPC
• 2.0m Single-Mode:UOS2LCLC02m-UPC
• 3.0m Single-Mode: UOS2LCLC03m-UPC
• 5.0m Single-Mode: UOS2LCLC05m-UPC
• 7.0m Single-Mode: UOS2LCLC07m-UPC
• 10m Single-Mode: UOS2LCLC10m-UPC
• 15m Single-Mode: UOS2LCLC15m-UPC
• 20m Single-Mode: UOS2LCLC20m-UPC
• Custom configurations available upon request - contact the factory for additional information
