Hybrid Demarcation Cable - SSF & BendSafe
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.
Cleerline BendSafe® fiber leverages a patented layered hard acrylate construction that increases optical strand strength while delivering a cable that's physically similar to traditional fiber but with significantly better strength, durability and pliability.
Cleerline Hybrid Demarcation Cable joins these two fiber constructions together in a duplex jacket, providing the ultimate cable for wiring demarcation points, ISP feeds and other broadband fiber extensions.
SSF fiber terminates faster without the need for proprietary or expensive tools -- technicians spend up to 50% less time when using mechanical connectors. BendSafe fiber terminates identically to traditional bend-insensitive but with significantly better strength -- it's ideal for fusion splicing. Put these two constructions together and you have a flexible solution for a variety of different applications and competencies -- forget stocking multiple cable spools on the truck!

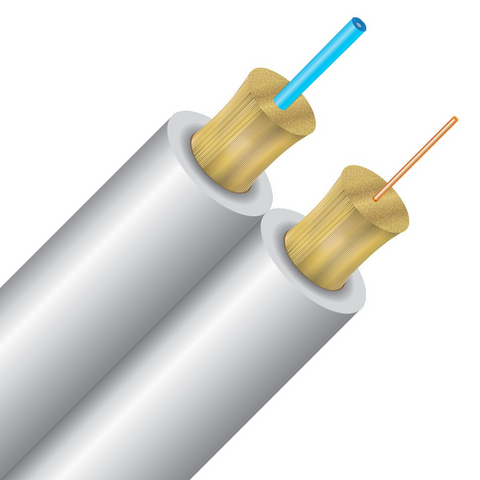

Cleerline SSF Hybrid Demarcation Cable features a plenum-rated indoor/outdoor jacket that provides protection from water, UV and temperature fluctuations, and its 3.0mm duplex zip-cord construction makes separating the strands easy.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features

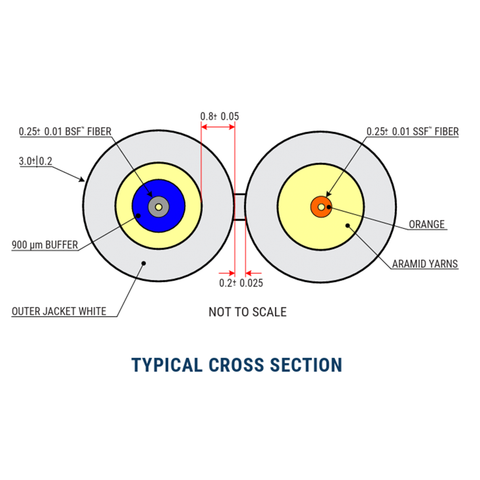

- 3.0mm x 2 strand duplex zip-cord construction
- Constructed of 1 strand of premium single-mode SSF fiber and 1 strand of premium single-mode BendSafe fiber
- Plenum-rated indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
- White jacket color
- Rated for outdoor above-ground installation or below ground in conduit, pipe or duct
- Sequential foot markings on jacket
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Single-Mode LC APC Fiber Connectors: SSF-LC-SMAPC-10
- Single-Mode SC APC Fiber Connectors: SSF-SC-SMAPC-10
Downloads
Stock Product Ordering Information
- Hybrid Demarcation Cable - 1000ft: DH9125SMOS2P
- Custom cuts and configurations available upon request - contact the factory for additional information
