Duplex Single-Mode 2x3.0mm Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

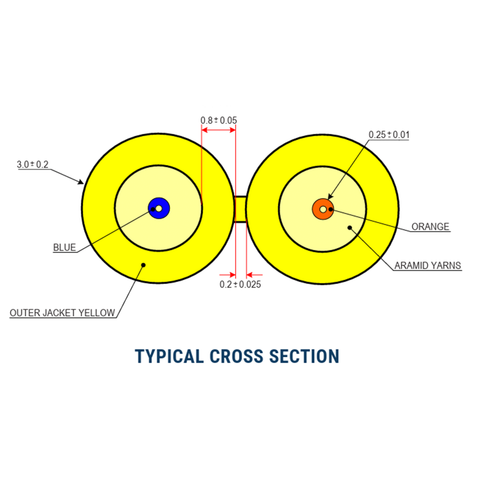

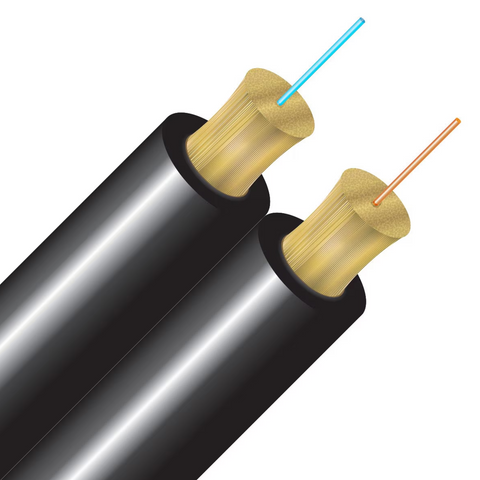

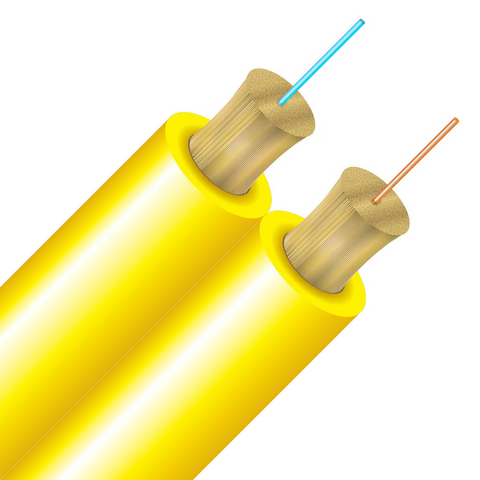

The Cleerline Duplex Single-Mode 2x3.0mm Cable features two SSF fiber optic strands in two zip-cord connected 3.0mm jackets. Available in different ratings, the Duplex Cable is ideal for communication networking, audio-visual connectivity and control signal distribution.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- 2x single-mode fiber optic strands
- Constructed of premium SSF fiber
- Available in riser indoor, plenum indoor/outdoor and LSZH/CPR ratings
- Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
- Yellow and black jacket colors
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Single-Mode LC Mechanical Connectors: SSF-LC-SMUPC-10
- Single-Mode LC APC Mechanical Connectors: SSF-LC-SMAPC-10
- Single-Mode SC Mechanical Connectors: SSF-SC-SMUPC-10
- Single-Mode SC APC Mechanical Connectors: SSF-SC-SMAPC-10
- Single-Mode ST Mechanical Connectors: SSF-ST-SMUPC-02
- Single-Mode ST APC Mechanical Connectors: SSF-ST-SMAPC-02
Downloads
- Duplex Single-Mode Cable Technical Specifications
- Duplex Single-Mode Cable Technical Specifications - Espanol
Stock Product Ordering Information
- Riser Indoor Single-Mode - 1000ft: D29125SMOSR
- Plenum I/O Single-Mode - 1000ft: D29125SMOSP
- Plenum I/O Single-Mode Black - 1000ft: D29125SMOSP-BK
- LSZH/CPR Single-Mode - 1000ft: D29125SMOSL
- Custom cuts and configurations available upon request - contact the factory for additional information
