Distribution Single-Mode Cable - BendSafe

Cleerline BendSafe® fiber leverages a patented layered hard acrylate construction that increases optical strand strength while delivering a cable that's physically similar to traditional fiber but with significantly better strength, durability and pliability.

Cleerline Single-Mode Distribution Cable provides multi-strand fiber distribution for network, audio-visual and control applications. Available in a variety of strand counts and jacket constructions, Cleerline Distribution cables feature a tight buffered construction with 900µm sub-units. Two strand (2F) constructions feature a stock white jacket and higher strand (4-24F) constructions feature a stock yellow jacket.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• Multi-strand single-mode fiber

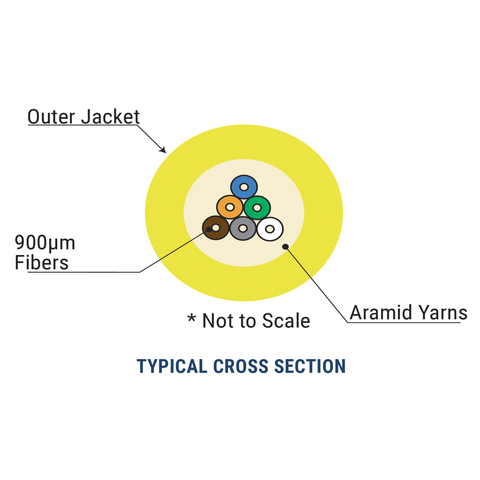

• Tight buffered construction with 900µm sub-units
• Available in riser indoor and plenum indoor/outdoor jacket ratings
• Constructed of premium BendSafe fiber
• Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations

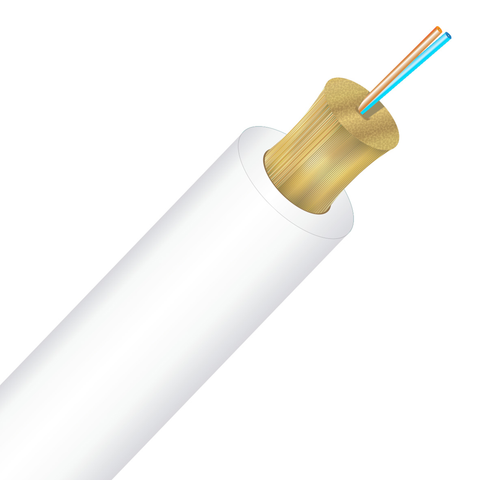

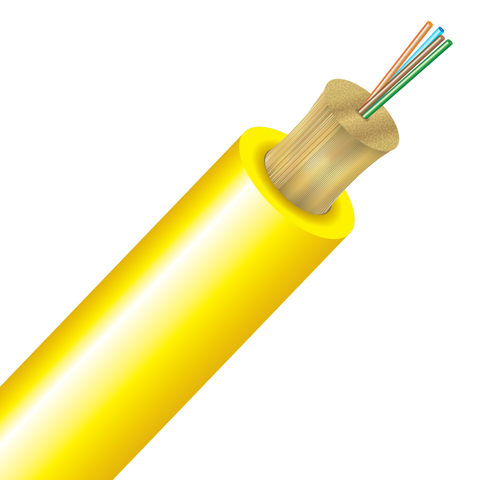

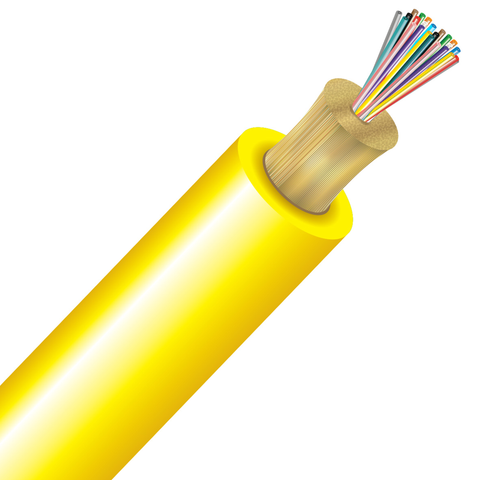

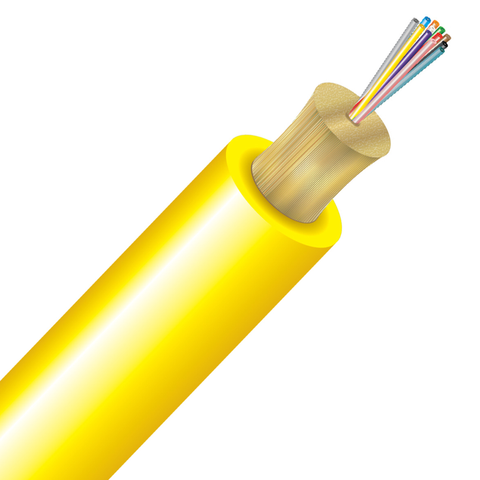

• White jacket color (2F) or yellow jacket color (4-24F)
• Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
• Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
• Delivers an ultra-tight 3.0mm minimum bend radius with a 25+ year life expectancy
• Provides a 1250x greater flex cycle rating and 1000x better impact rating than traditional bend-insensitive fiber
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Sequential foot markings on jacket
• Custom configurations and constructions available upon request

Recommended Cleerline Accessories

• Single-Mode LC Mechanical Connectors: SSF-LC-SMUPC-10
• Single-Mode LC APC Mechanical Connectors: SSF-LC-SMAPC-10
• Single-Mode SC Mechanical Connectors: SSF-SC-SMUPC-10
• Single-Mode SC APC Mechanical Connectors: SSF-SC-SMAPC-10
• Single-Mode ST Mechanical Connectors: SSF-ST-SMUPC-02
• Single-Mode ST APC Mechanical Connectors: SSF-ST-SMAPC-02

Downloads

• Single-Mode 2F Distribution Technical Specifications
• Single-Mode 4-24F Distribution Technical Specifications

Stock Product Ordering Information

• 2F Riser Indoor - White - 1000ft: TN002S2D9WR
• 2F Plenum Indoor/Outdoor- White - 1000ft: TN002S2D9WP
• 4F Riser Indoor - Yellow - 1000ft: TN004S2D9YR
• 4F Plenum Indoor/Outdoor - Yellow - 1000ft: TN004S2D9YP
• 6F Riser Indoor - Yellow - 1000ft: TN006S2D9YR
• 6F Plenum Indoor/Outdoor - Yellow - 1000ft: TN006S2D9YP
• 12F Riser Indoor - Yellow - 1000ft: TN012S2D9YR
• 12F Plenum Indoor/Outdoor - Yellow - 1000ft: TN012S2D9YP
• 24F Riser Indoor - Yellow - 1000ft: TN024S2D9YR
• 24F Plenum Indoor/Outdoor - Yellow - 1000ft: TN024S2D9YP
• Custom cuts and configurations available upon request - contact the factory for additional information
