Distribution Multimode OM3 Cable - BendSafe
Cleerline BendSafe® fiber leverages a patented layered hard acrylate construction that increases optical strand strength while delivering a cable that's physically similar to traditional fiber but with significantly better strength, durability and pliability.
Cleerline Multimode OM3 Distribution Cable provides multi-strand fiber distribution for network, audio-visual and control applications. Available in a variety of strand counts and jacket constructions, Cleerline Distribution cables feature a tight buffered construction with 900µm sub-units.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- Multi-strand multimode OM3 fiber

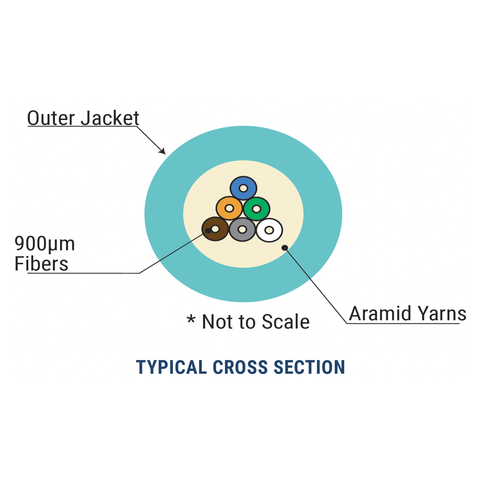

- Tight buffered construction with 900µm sub-units
- Available in riser indoor and plenum indoor/outdoor jacket ratings
- Constructed of premium BendSafe fiber
- Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
- Aqua jacket color
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an ultra-tight 3.0mm minimum bend radius with a 25+ year life expectancy
- Provides a 1250x greater flex cycle rating and 1000x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
- Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
- Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
Downloads
Stock Product Ordering Information
- 2F Riser Indoor - 1000ft: TN002M3D9AR
- 2F Plenum Indoor/Outdoor - 1000ft:TN002M3D9AP
- 4F Riser Indoor - 1000ft: TN004M3D9AR
- 4F Plenum Indoor/Outdoor - 1000ft: TN004M3D9AP
- 6F Riser Indoor - 1000ft: TN006M3D9AR
- 6F Plenum Indoor/Outdoor - 1000ft: TN006M3D9AP
- 12F Riser Indoor - 1000ft: TN012M3D9AR
- 12F Plenum Indoor/Outdoor - 1000ft: TN012M3D9AP
- 24F Riser Indoor - 1000ft: TN024M3D9AR
- 24F Plenum Indoor/Outdoor - 1000ft: TN024M3D9AP
- Custom cuts and configurations available upon request - contact the factory for additional information
