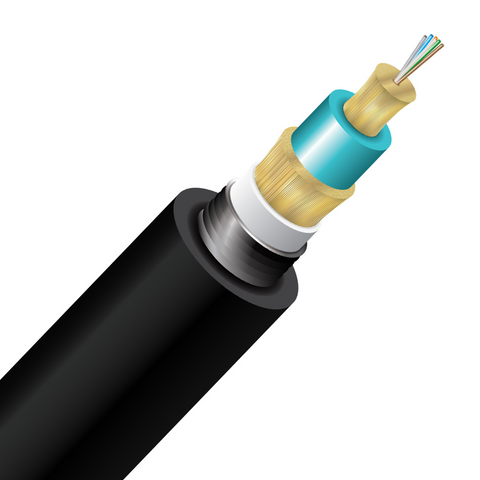

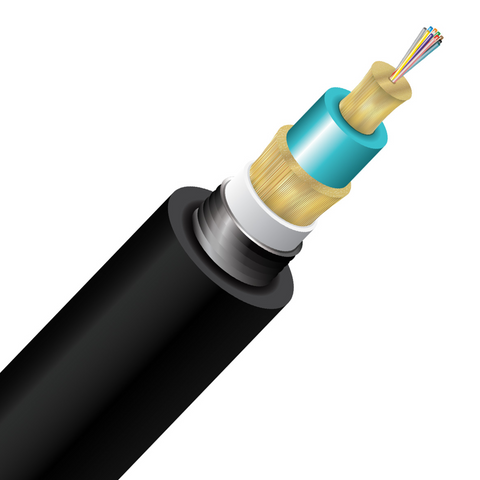

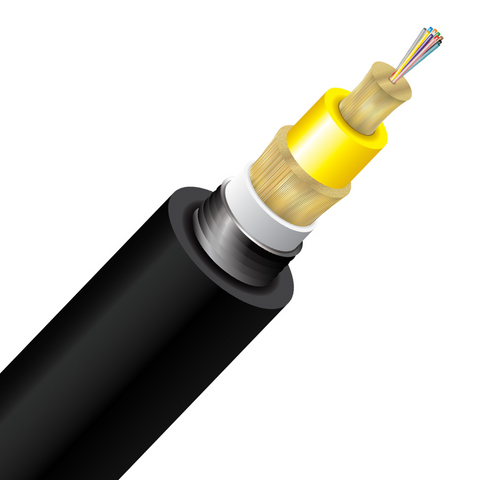

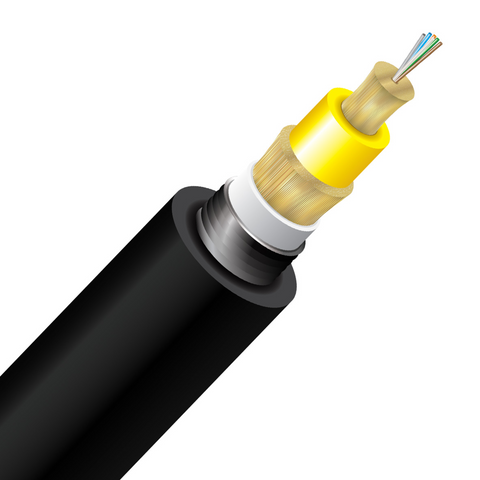

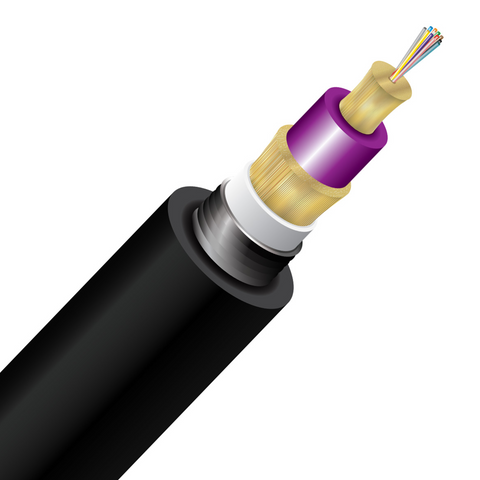

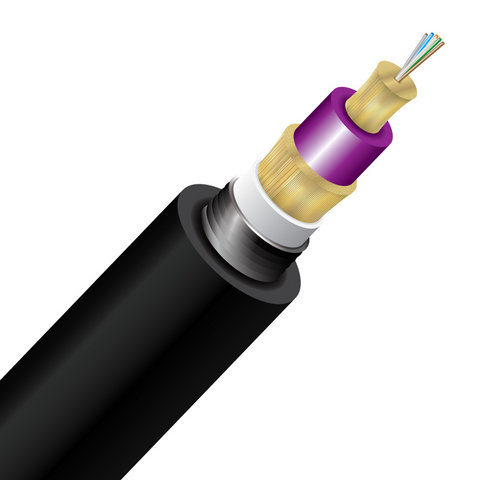

Armored Direct Burial Distribution Cable - BendSafe

Cleerline BendSafe® fiber leverages a patented layered hard acrylate construction that increases optical strand strength while delivering a cable that's physically similar to traditional fiber but with significantly better strength, durability and pliability.

BendSafe Armored Direct Burial Cable is specifically designed for outdoor installation, including direct burial in soil or aerial installation above ground. Corrugated steel armor provides protection from abrasion, impact and rodents, while a black polyethylene jacket provides protection from water, UV and mold.

Cleerline Direct Burial Cable provides superior all-weather protection while delivering multiple 900µm internal tight buffered strands of multimode OM3, multimode OM4 or single-mode fiber.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• Rated for outdoor direct burial or aerial installation
• Integrated corrugated steel armor provides protection from abrasion, impact and rodents
• Black polyethylene jacket provides protection from water, UV and mold
• 900µm tight buffered distribution sub-units
• Compatible with all common connector systems
• Sequential foot markings on jacket
• -20 to 60°C (-4 to 140°F) operating temperature
• 607lb installation pull-rating
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Custom configurations and constructions available upon request

Recommended Cleerline Accessories

• Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
• Single-Mode LC Mechanical Connectors: SSF-LC-SMUPC-10
• Single-Mode LC APC Mechanical Connectors: SSF-LC-SMAPC-10
• Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
• Single-Mode SC Mechanical Connectors: SSF-SC-SMUPC-10
• Single-Mode SC APC Mechanical Connectors: SSF-SC-SMAPC-10
• Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
• Single-Mode ST Mechanical Connectors: SSF-ST-SMUPC-02
• Single-Mode ST APC Mechanical Connectors: SSF-ST-SMAPC-02

Downloads

• Multimode OM3 Direct Burial Technical Specifications
• Multimode OM4 Direct Burial Technical Specifications
• Single-Mode Direct Burial Technical Specifications

Stock Product Ordering Information

• 6F Multimode OM3 - 1000ft: TD006M3D9BN
• 6F Multimode OM4 - 1000ft: TD006M4D9BN
• 6F Single-Mode - 1000ft: TD006S2D9BN
• 12F Multimode OM3 - 1000ft: TD012M3D9BN
• 12F Multimode OM4 - 1000ft: TD012M4D9BN
• 12F Single-Mode - 1000ft: TD012S2D9BN

• Custom cuts and configurations available upon request - contact the factory for additional information
