Aluminum Interlocking Armored Distribution Cable - BendSafe

Cleerline BendSafe® fiber leverages a patented layered hard acrylate construction that increases optical strand strength while delivering a cable that's physically similar to traditional fiber but with significantly better strength, durability and pliability.

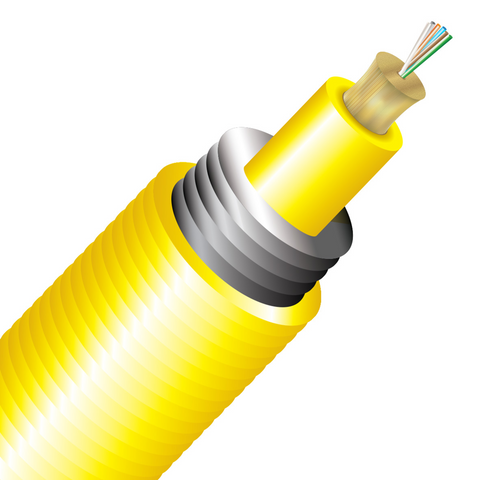

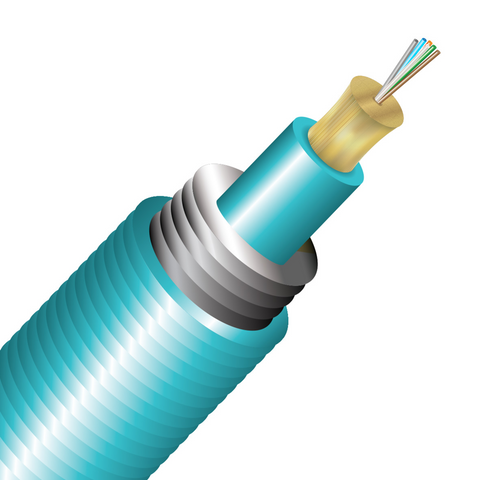

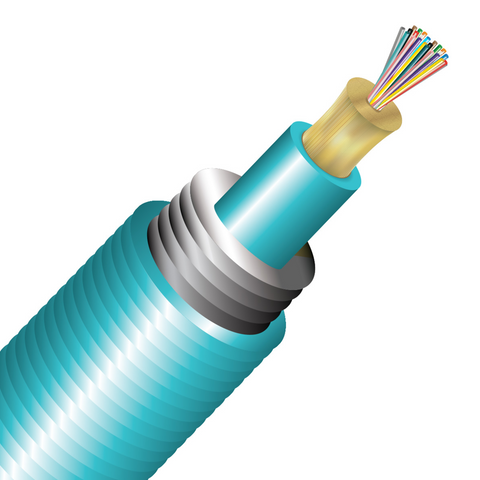

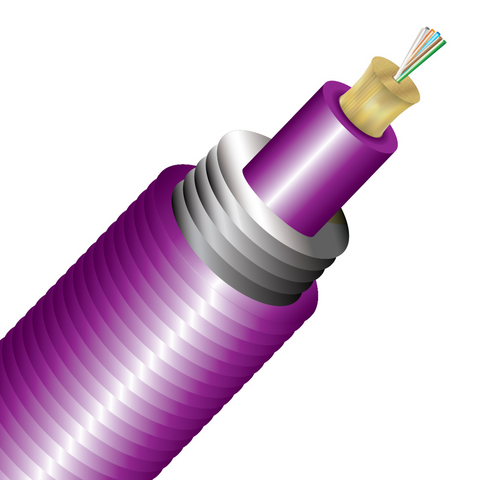

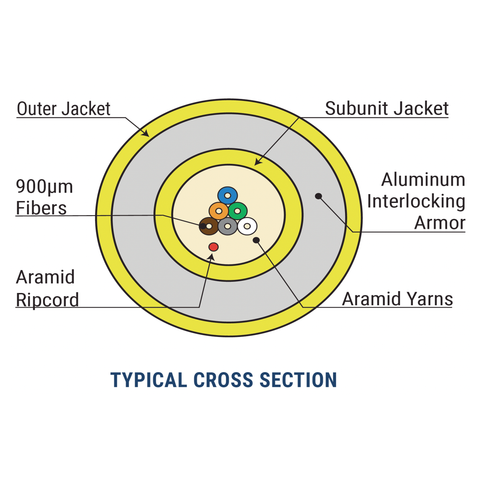

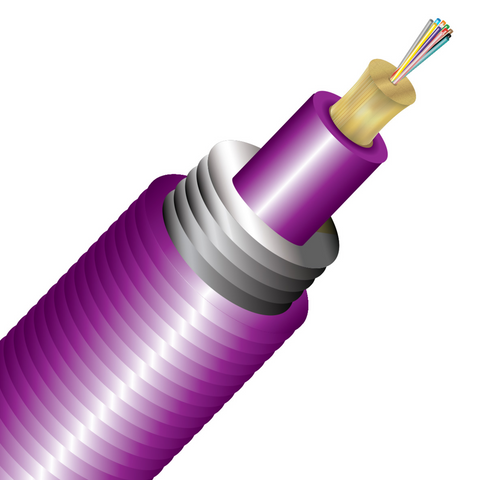

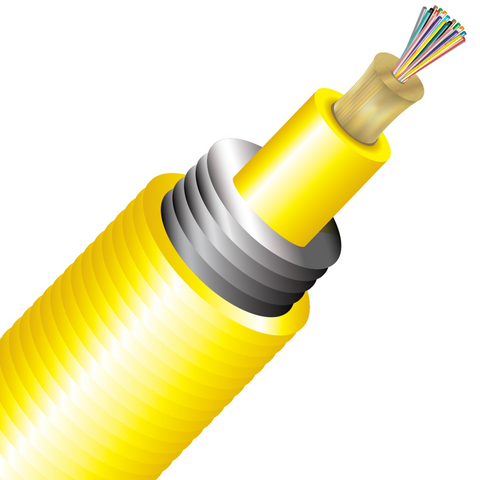

BendSafe Aluminum Interlocking Armored (AIA) Cable features spirally wrapped internal aluminum armoring which provides crush resistance and protection from rodents, abrasion and impact. A plenum indoor/outdoor rated jacket provides further protection from water, UV and temperature fluctuations.

Available multimode OM3, multimode OM4 and single-mode constructions, Cleerline AIA is ideal for harsh environments and mission-critical applications.

Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.

Features

• Aluminum interlocking armor (AIA) construction
• Plenum indoor/outdoor rated jacket
• Available in multimode OM3, multimode OM4 and single-mode fiber
• Integrated armor provides protection from abrasion, impact and rodents
• Patented SSF coating provides optical strand protection
• 900µm tight buffered distribution sub-units
• Compatible with all common connector systems
• Sequential foot markings on jacket
• Available in Made-in-USA and TAA-compliant constructions
• 100% compatible with all standard fiber cable management and connectivity products
• Custom configurations and constructions available upon request

Recommended Cleerline Accessories

• Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
• Single-Mode LC Mechanical Connectors: SSF-LC-SMUPC-10
• Single-Mode LC APC Mechanical Connectors: SSF-LC-SMAPC-10
• Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
• Single-Mode SC Mechanical Connectors: SSF-SC-SMUPC-10
• Single-Mode SC APC Mechanical Connectors: SSF-SC-SMAPC-10
• Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
• Single-Mode ST Mechanical Connectors: SSF-ST-SMUPC-02
• Single-Mode ST APC Mechanical Connectors: SSF-ST-SMAPC-02

Downloads

• AIA Multimode OM3 Technical Specifications
• AIA Multimode OM4 Technical Specifications
• AIA Single-Mode Technical Specifications
• AIA Cable Preparation Video

Stock Product Ordering Information

• Plenum I/O 6F OM3 - 1000ft: TA006M3D9AP
• Plenum I/O 6F OM4 - 1000ft: TA006M4D9MP
• Plenum I/O 6F Single-Mode - 1000ft: TA006S2D9YP
• Plenum I/O 12F OM3 - 1000ft: TA012M3D9AP
• Plenum I/O 12F OM4 - 1000ft: TA012M4D9MP
• Plenum I/O 12F Single-Mode - 1000ft: TA012S2D9YP
• Plenum I/O 24F OM3 - 1000ft: TA024M3D9AP
• Plenum I/O 24F OM4 - 1000ft: TA024M4D9MP
• Plenum I/O 24F Single-Mode: TA024S2D9YP
• Custom cuts and configurations available upon request - contact the factory for additional information
