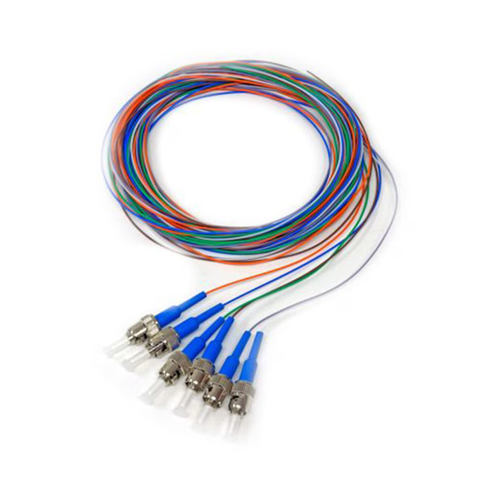

900um Pigtail - 6 ST

Cleerline Fiber Optic Pigtails provide the fast termination of SSF, BendSafe or traditional fiber cable via fusion or mechanical splicing.

Each pigtail arrives with a factory-terminated connector on one end and an exposed bare fiber on the other. Their 900μm tight buffered construction makes them ideal for connecting trunk cables within splice cassettes, rack-mount enclosures and wall-mount enclosures.

Cleerline pigtails feature high precision zirconia ferrules that allow for minimal return loss, low attenuation and are optimized for high-bandwidth applications. Plus, all fiber strands are color-coded according to TIA standards.



Features

• Quickly terminate SSF, BendSafe and traditional fiber via fusion or mechanical splicing
• Factory-terminated connector on one end and an exposed bare fiber on the other
• Features 6 total ST connections
• 3m (9.8ft) length
• 900μm tight buffered construction
• Color-coded to TIA standards
• Accommodates both ribbon and individual fiber fiber splices
• Factory-tested for performance
• Low insertion and return loss
• High precision zirconia ferrule



Downloads

• Pigtail Technical Specifications



Ordering Information

• 6 ST / Multimode OM3 / 3m: PT-ST06-MM-3M

• 6 ST / Single-Mode / 3m: PT-ST06-SM-3M
