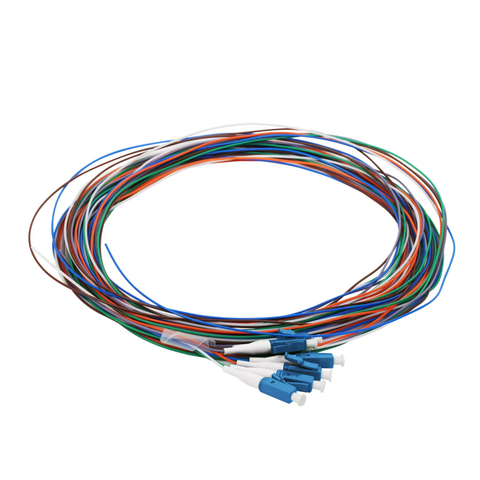

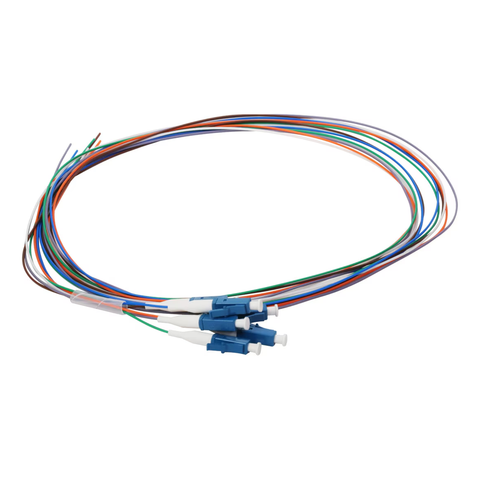

900um Pigtail - 6 LC
Cleerline Fiber Optic Pigtails provide the fast termination of SSF, BendSafe or traditional fiber cable via fusion or mechanical splicing.
Each pigtail arrives with a factory-terminated connector on one end and an exposed bare fiber on the other. Their 900μm tight buffered construction makes them ideal for connecting trunk cables within splice cassettes, rack-mount enclosures and wall-mount enclosures.
Cleerline pigtails feature high precision zirconia ferrules that allow for minimal return loss, low attenuation and are optimized for high-bandwidth applications. Plus, all fiber strands are color-coded according to TIA standards.
Features
- Quickly terminate SSF, BendSafe and traditional fiber via fusion or mechanical splicing
- Factory-terminated connector on one end and an exposed bare fiber on the other
- Features 6 total LC connections
- Available in either 1m (3.3ft) or 3m (9.8ft) lengths
- 900μm tight buffered construction
- Color-coded to TIA standards
- Accommodates both ribbon and individual fiber fiber splices
- Factory-tested for performance
- Low insertion and return loss
- High precision zirconia ferrule
Downloads
Ordering Information
- 6 LC / Multimode OM3 / 1m: PT-LC06-MM-1M
- 6 LC / Multimode OM3 / 3m: PT-LC06-MM-3M
- 6 LC / Single-Mode / 1m: PT-LC06-SM-1M
- 6 LC / Single-Mode / 3m: PT-LC06-SM-3M
900um Pigtail - 6 LC
From $16.67
