4 Strand Breakout Cable - SSF
Cleerline SSF™ fiber leverages a patented glass-encapsulated-by-polymer construction that significantly increases optical strand strength while eliminating contaminant access points. SSF delivers a stronger, more flexible cable that's thinner and easier to terminate in the field.

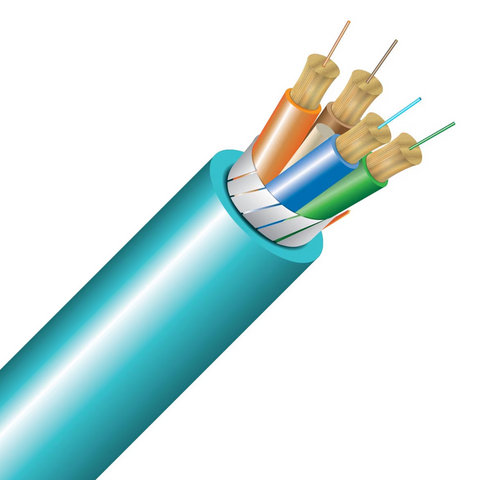

Cleerline Breakout Cable provides four strands of 2.0mm tight buffered fiber within a 7.2mm overall jacket. It's lightweight, flexible and ideal for remote network, audio-visual and control distribution.
Cleerline Breakout Cable is available in multimode OM3 in both indoor riser and indoor/outdoor plenum constructions.
Don't see your required cable configuration above? Use our Custom Bulk Cable Builder to check inventory or quote a custom configuration.
Features
- 4x multimode OM3 fiber optic strands

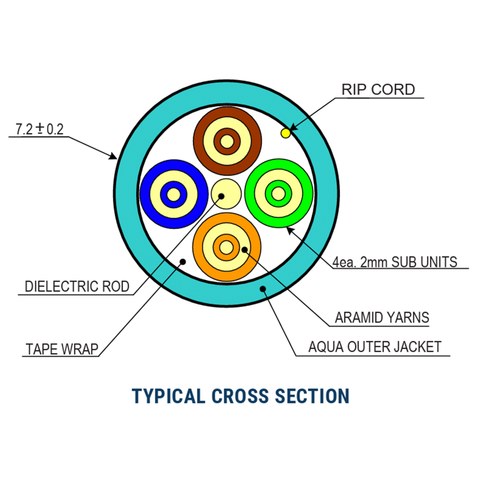

- 2.0mm tight buffered sub-units jacketed within a 7.2mm overall cable
- Constructed of premium SSF fiber
- Available in riser indoor and plenum indoor/outdoor
- Indoor/outdoor jacket provides protection from water, UV and temperature fluctuations
- Aqua jacket color
- Conforms to industry standards while delivering improved strength, durability, flexibility and lifespan over standard bend-insensitive fiber
- Compatible with standard tools and connector systems, including both mechanical terminations and fusion spliced terminations
- Delivers an industry-leading 2.2mm minimum bend radius with a 50+ year life expectancy
- Provides a 2000x greater flex cycle rating and 1500x better impact rating than traditional bend-insensitive fiber
- Available in Made-in-USA and TAA-compliant constructions
- 100% compatible with all standard fiber cable management and connectivity products
- Sequential foot markings on jacket
- Custom configurations and constructions available upon request
Recommended Cleerline Accessories
- Multimode LC Mechanical Connectors: SSF-LC-MMFPC-10
- Multimode SC Mechanical Connectors: SSF-SC-MMFPC-10
- Multimode ST Mechanical Connectors: SSF-ST-MMUPC-02
Downloads
Stock Product Ordering Information
- Riser Indoor OM3 - 1000ft: 4B50125OM3R
- Plenum Indoor/Outdoor OM3 - 1000ft: 4B50125OM3P
- Custom cuts and configurations available upon request - contact the factory for additional information
