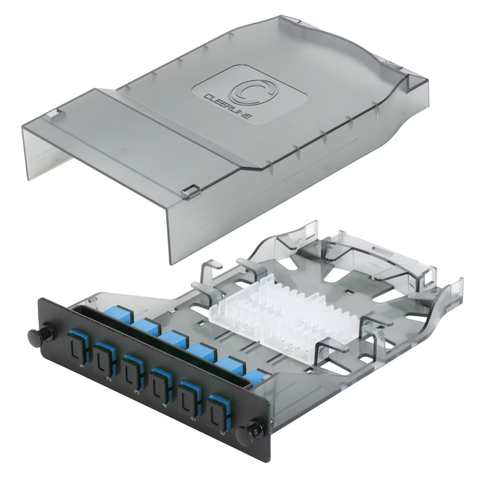

LGX Splice Cassette - 6 SC

Cleerline HD Splice Cassettes provide a secure and efficient enclosure for managing fusion-spliced connections and patching. Cassettes conform to the LGX standard, making them compatible with a wide arrange of rack and wall-mount enclosures, patch panels and mounting brackets.

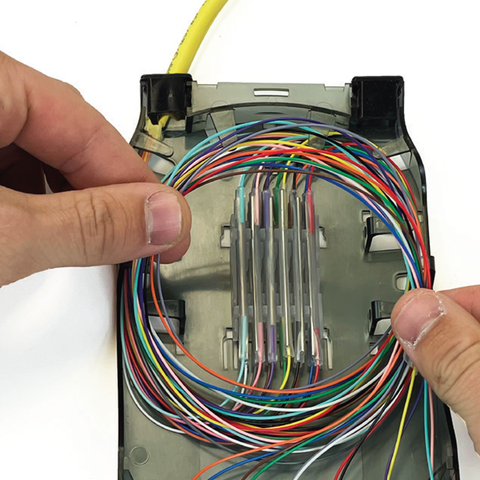

Each splice cassette comes pre-loaded with (1) 900μm 1 meter pigtail eliminating the need for a separate splice tray. For added versatility and security, each cassette also features a mounted splice holder (chip), cable winding tabs and a removable transparent cover.

For fast and efficient installation, Cleerline HD Splice Cassettes include heat shrink splice protection tubes, removable splice organizers and cable management accessories. All cassettes, adapters, connectors and fiber strands are color-coded according to TIA standards.



Features

• Quickly and efficiently fusion-splice and manage SSF, BendSafe and traditional fiber connections
• Features 6 total SC connections
• Conforms to LGX standards

• Compatible with LGX-style enclosures, patch panels and mounting brackets
• Factory-loaded with (1) 900μm 1 meter pigtail

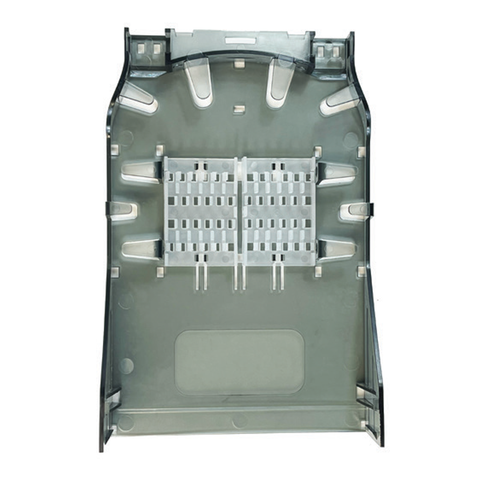

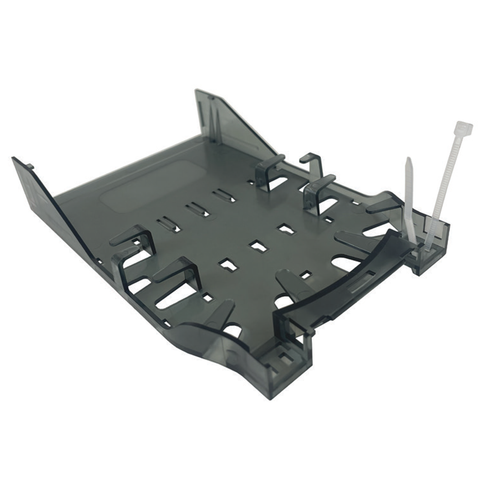

• Features mounted splice holder (chip) and cable winding tabs
• Transparent housing provides easy verification of fiber
• Includes heat shrink splice protection tubes, removable splice organizers and cable management accessories
• Color-coded to TIA standards
• Pigtail accommodates both ribbon and individual fiber splices



Recommended Cleerline Accessories

• LGX Mounting Bracket: SHD-BRKT-1



Downloads

• HD Splice Cassette Technical Specifications
• HD Splice Cassette Technical Specifications - Espanol
• HD Splice Cassette Manual
• HD Splice Cassette Manual - Espanol
• HD Splice Cassette Installation Video



Ordering Information

• Multimode SC UPC: CTG-SHDSC06-MM
• Single-Mode SC UPC: CTG-SHDSC06-SMU
• Single-Mode SC APC: CTG-SHDSC06-SMA
