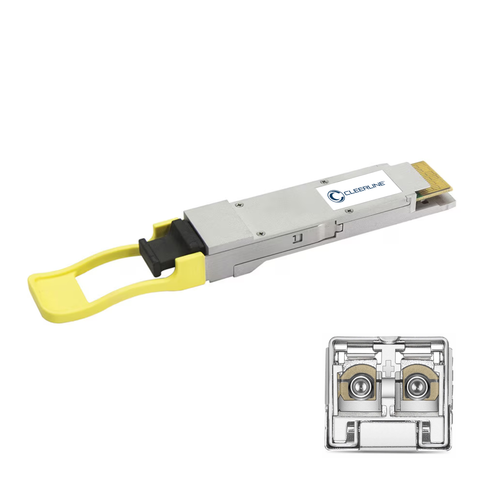

Fiber Transceiver - 100G Single-Mode QSFP28 1310nm 500m Duplex LC
Cleerline Fiber Optic Transceivers provide compact, hot-swappable connectivity for media converters, network switches, routers and other fiber-enabled devices with a small form-factor pluggable (SFP) port. They're the critical component that converts electrical signals into light pulses, allowing a variety of signals to transmit over optical cable.
Cleerline 100G QSFP28 Transceivers transmit signals up to 500m (1640ft) over single-mode fiber at 1310nm wavelengths. They require a duplex LC connection and support data rates up to 100G.
Please note: two matching transceivers are required for reliable operation -- one on the source end and one on the destination end.
Features
- QSFP28 MSA compliant
- 100G Lamda MSA 100GBase-DR1 compliant
- 1310nm wavelength
- Transmit up to 500m (1640ft) with FEC over two single-mode fibers
- Duplex LC connection
- 103.125Gb/s aggregate bit rate
- 4x25G electrical interface (OIF CEI-28G-VSR)
- EML laser with 50Gbps PAM
- 0 to 70°C (32 to 158°F) operating temperature
- 4W maximum power consumption
- Tested for compatibility with Cisco, Arista, Juniper and Edge-Core products
- Compatible with other 3rd party equipment following the MSA open slot (generic EEPROM) standard
Downloads
Ordering Information
- 100G SMF QSFP28 Transceiver: SSF-QSFP-100GDR1
Fiber Transceiver - 100G Single-Mode QSFP28 1310nm 500m Duplex LC
$918.00
